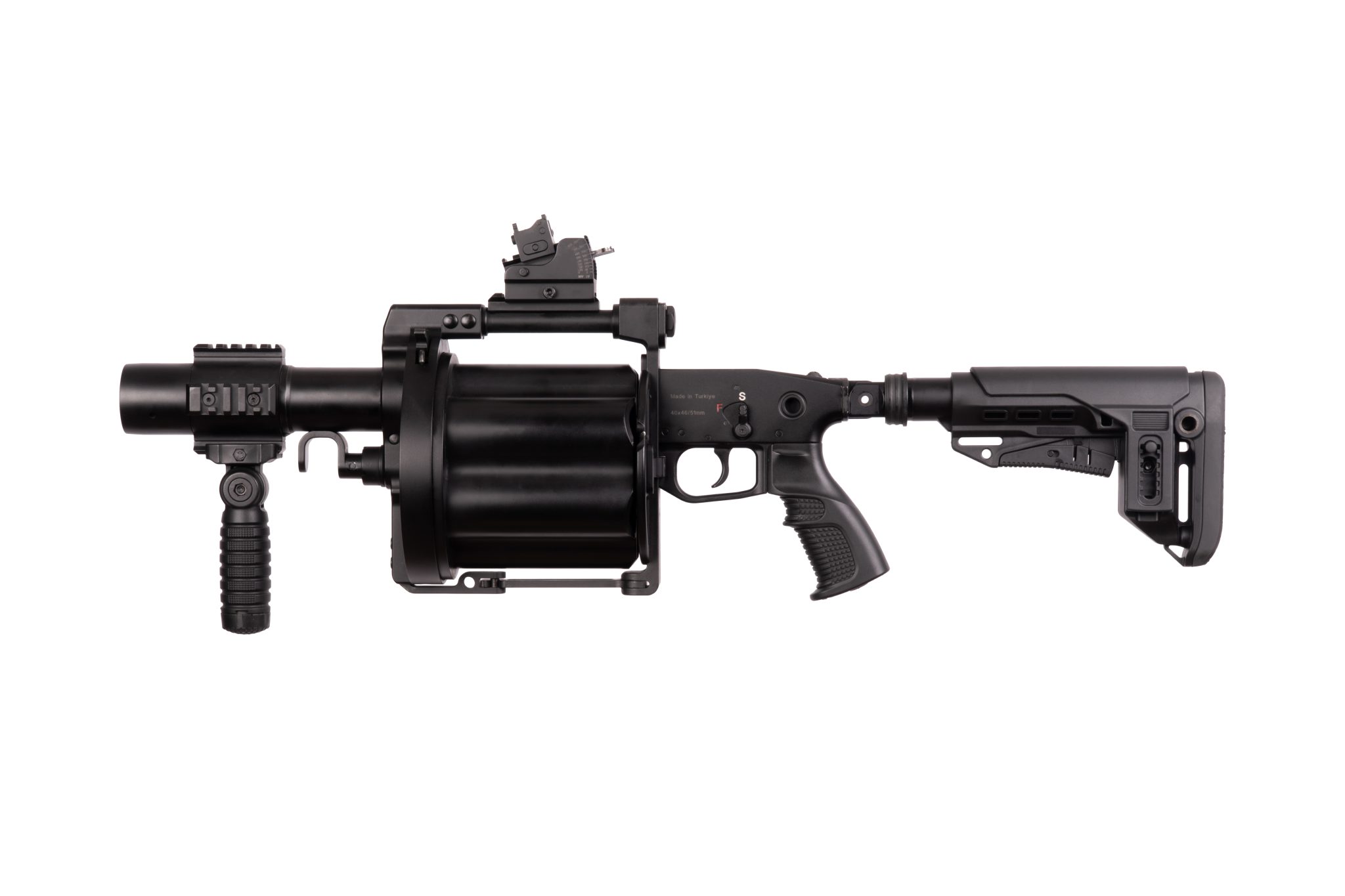

AK-40 MGL has been designed by Akdaş Arms to provide for the 6-shot Grenade Launcher need of the Turkish Armed Forces and law enforcement forces. It is lightweight, ergonomically built and practicle to use. Shoulder-fired AK-40MGL Grenade Launcher can be fired with all available low velocity (LV) 40x46 mm and Medium velocity MV 40x51 mm ammunition types (fog, lighting, gas, HE, thermobaric, and training). The 6-round drum magazine that rotates with the push of the helical spring performs the rotational movement. Thanks to its specially designed digital sight system, AK-40MGL can shoot accurately at a distance of up to 800 m using the MV 40x51 mm ammunition. It is a new generetaion Multiple Grenade Launcher that can be targetted easily by means of the 2-position telescopic stock.



  • Light and ergonomic design for ease of use and transportation
  • High wear resistant, hard chrome coated barrel with carbon alloy that provides a long barrel life span
  • Easy aiming and shooting with telescopic stock that can be adjusted to 2 different positions
  • Thanks to the Picatinny rails on the bottom, top and sides of the barrel and the upper body, it allows the attachment and use of additional equipment
  • Accurate shooting with the specially designed AK-SIGHT digital sight

Technicial Specifications

  • Barrel Length

    203 mm

  • Drum Length

    141 mm

  • Total Length (Stock Open)

    855 mm

  • Total Length (Stock Closed)

    780 mm

  • Operation

    Gas Operated System

  • Trigger Pull Force

    40-55 NM

  • Sight System

    Mechanics and Digital

  • Height

    210 mm

  • Width

    156 mm

  • Effective Range

    800 m with medium velocity MV ammunition and 400 m with low velocity LV ammunition

  • Caliber

    40 mm

  • Barrel Material

    4140 Crack-Controlled Alloy Steel

  • Receiver Material

    7075 Alloy Aluminium

  • Stock System

    5-stage telescopic stock that can be positioned in 2 different positions (-10, +25 degrees)

  • Shooting Pattern

    Into 5m diameter at 200m

  • Muzzle Velocity

    76 m/s with LV ammunition and, 100 m/s with MV ammunition

  • Trigger System

    Double-action Trigger
