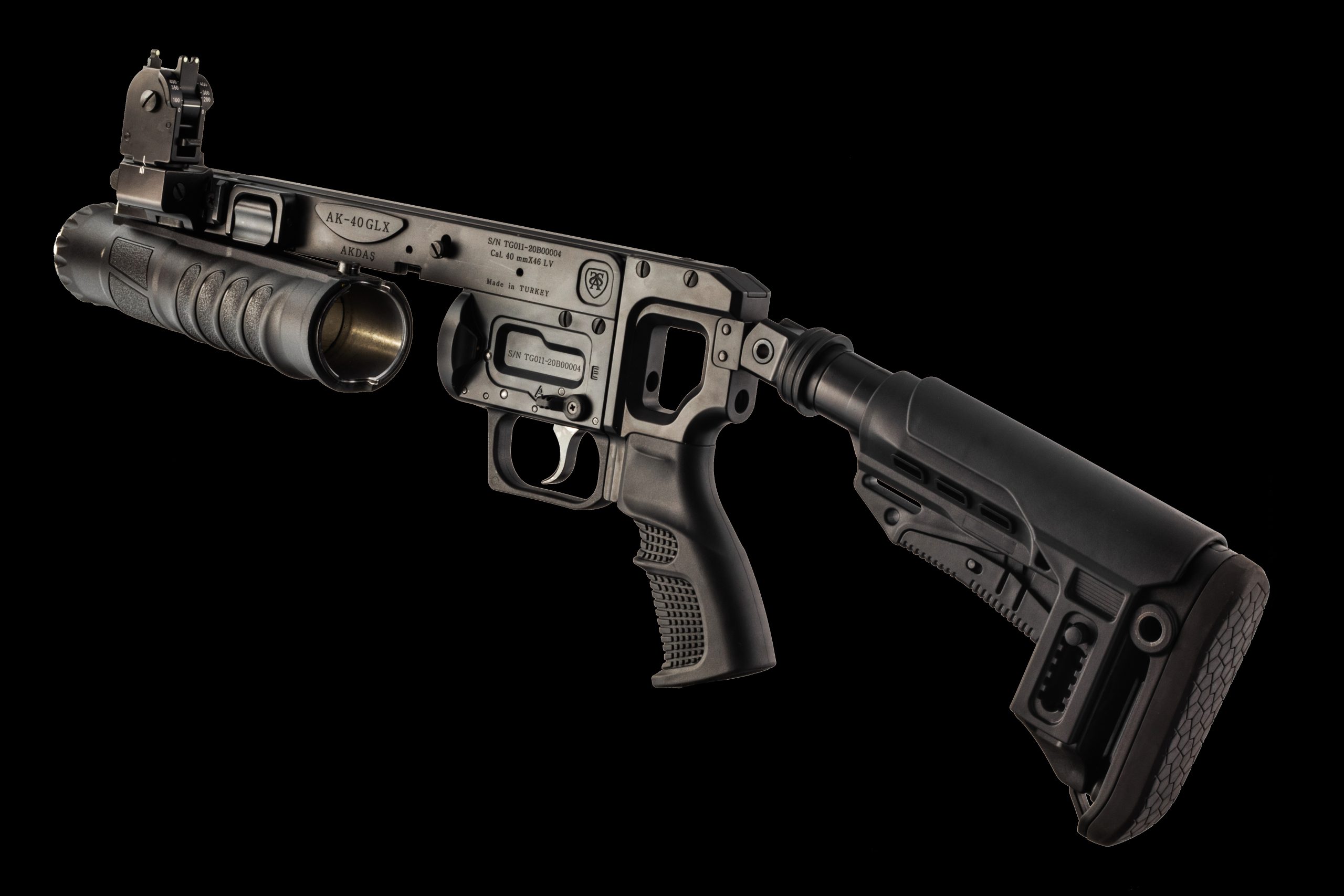

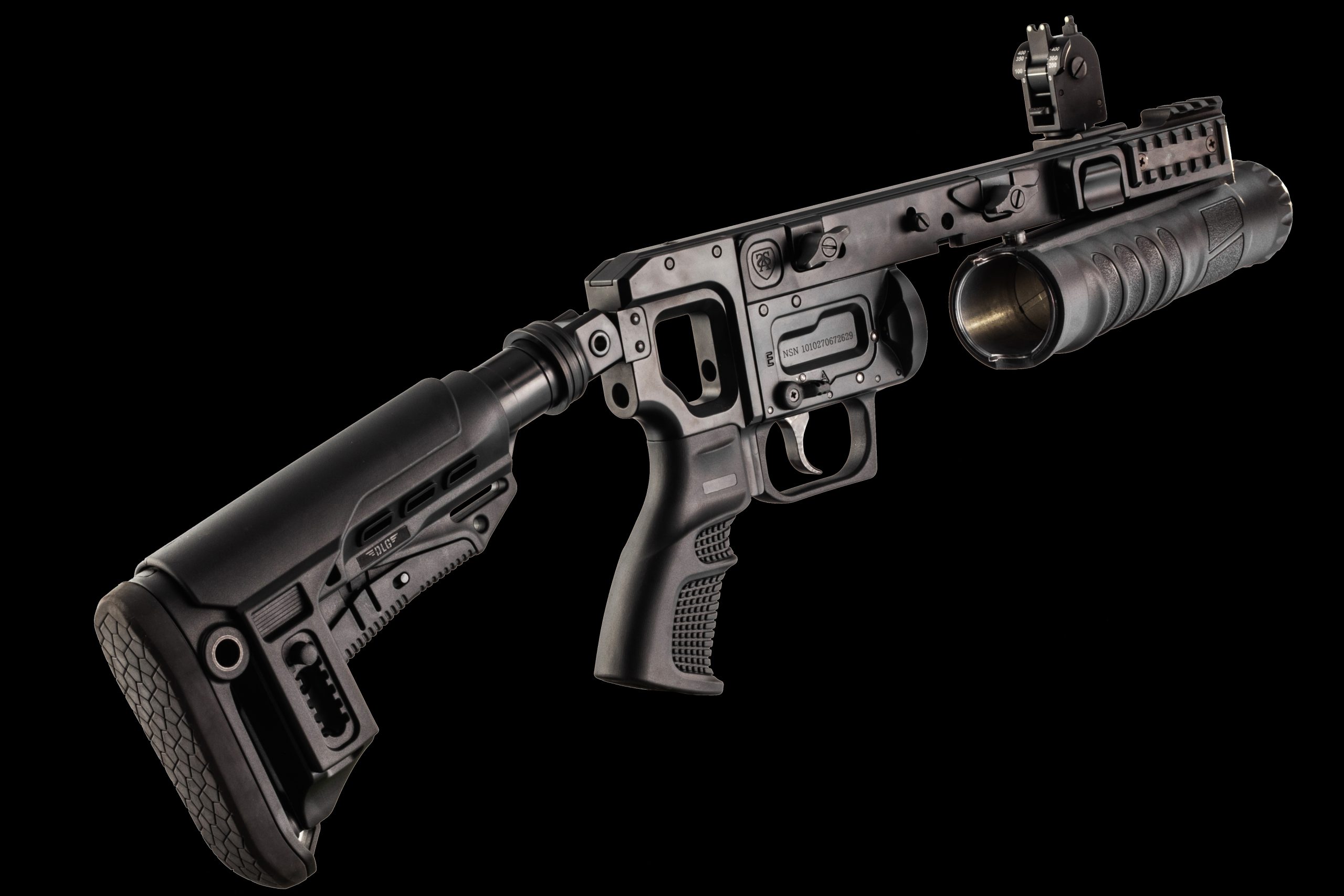

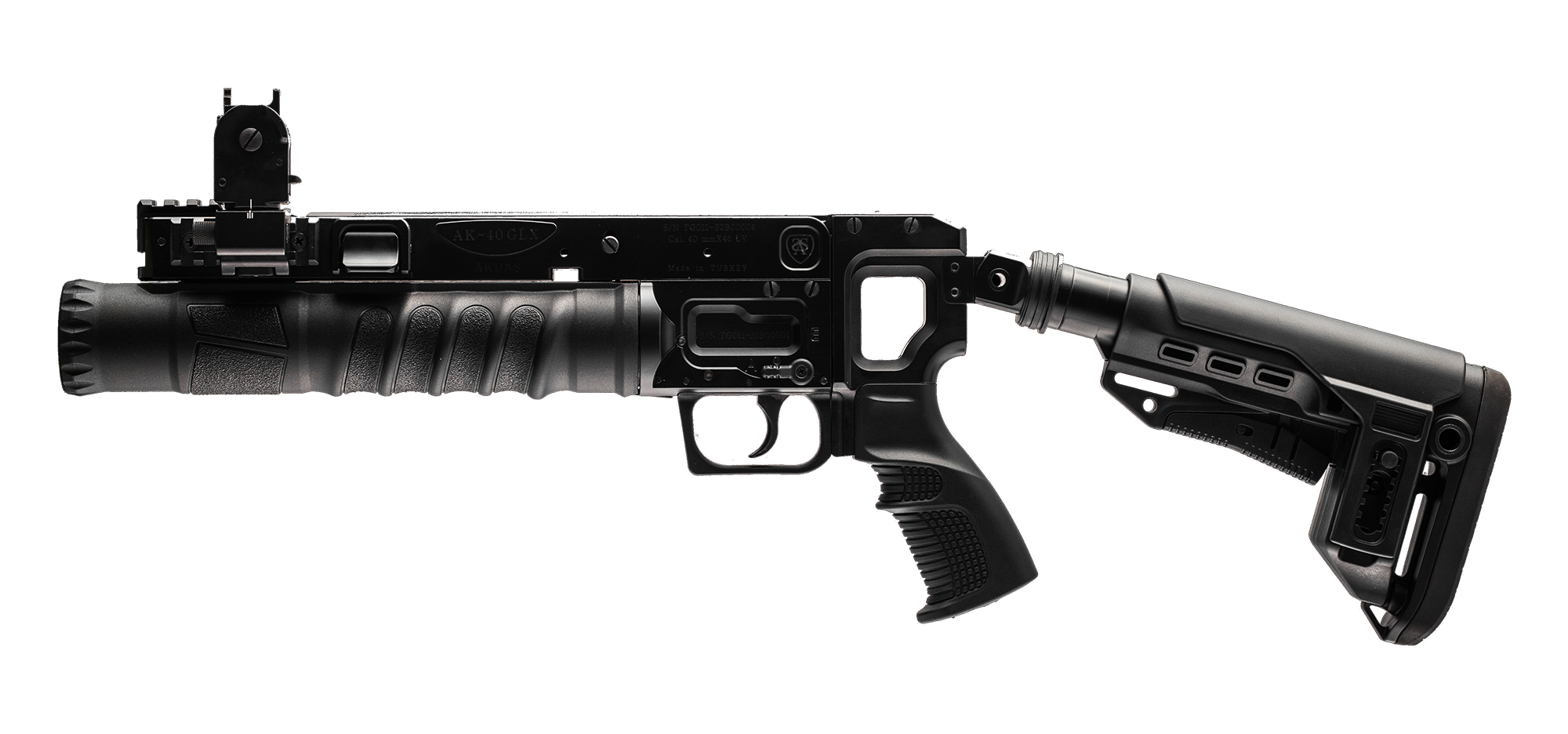

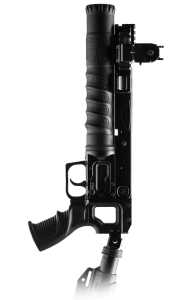

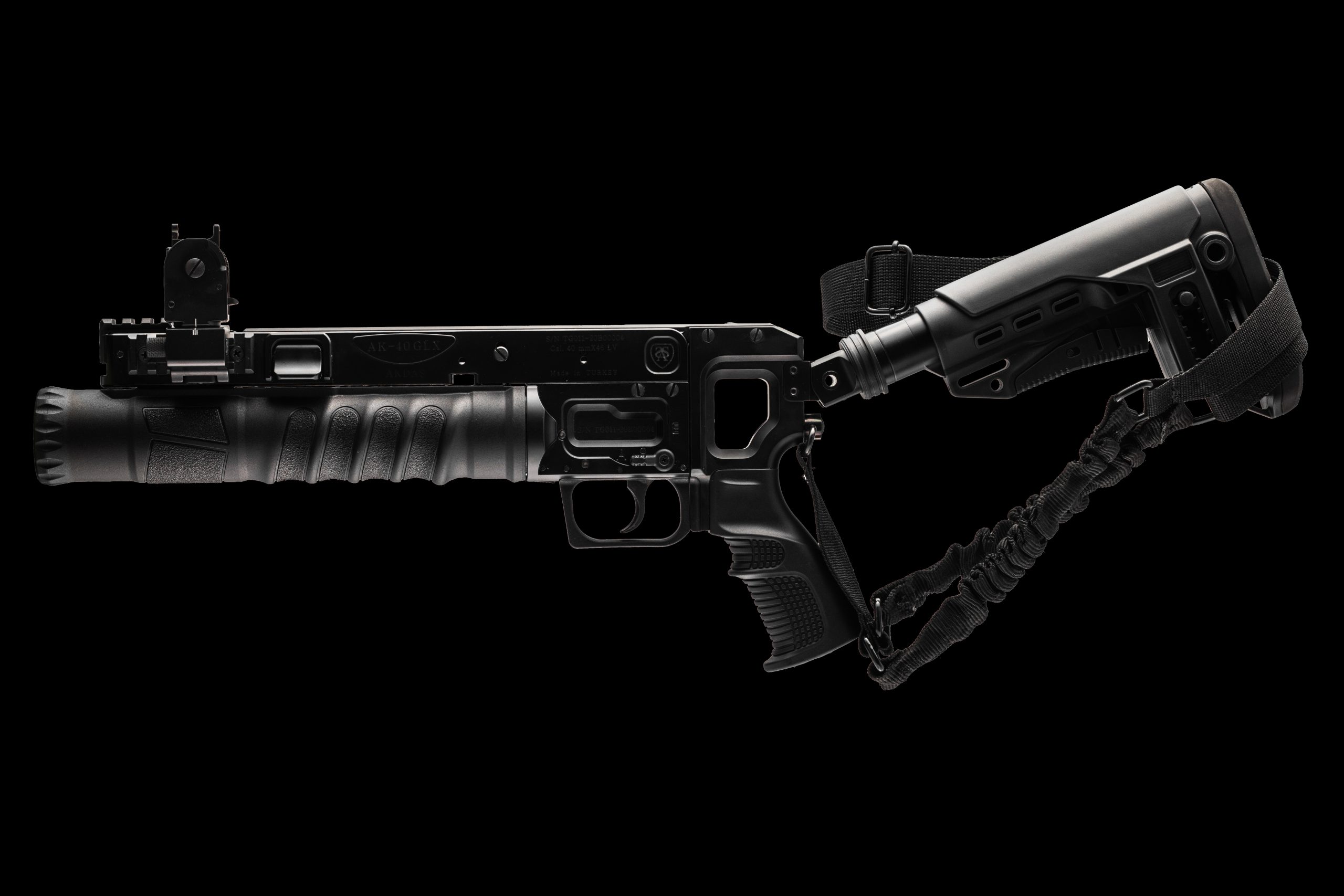

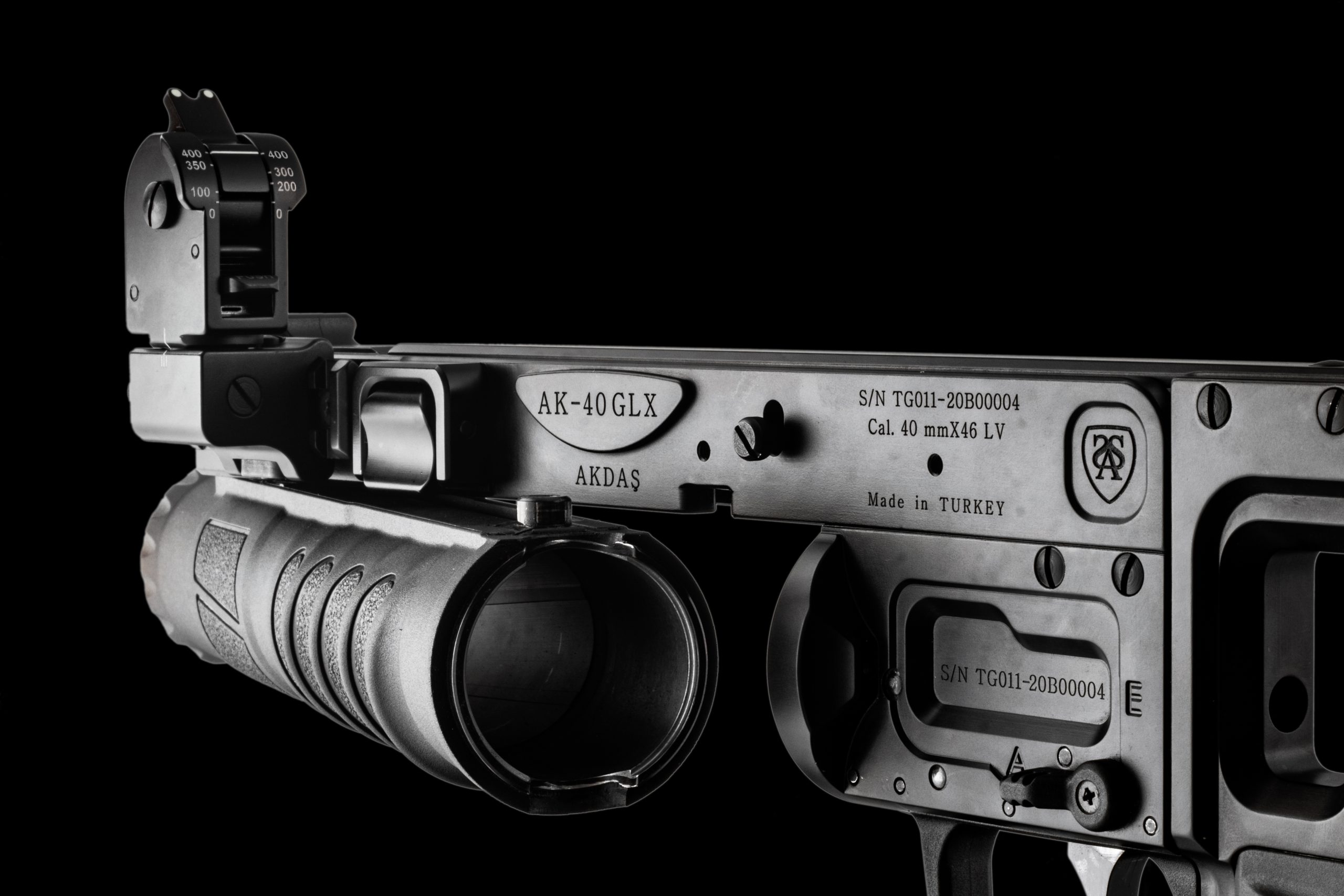

AK-40GLX _{Grenade Launcher}

BASIC SPECIFICATIONS

Light and ergonomic design for ease of use and transport
Unique design for right- hand and left-hand use (safety latch and double-sided loading)

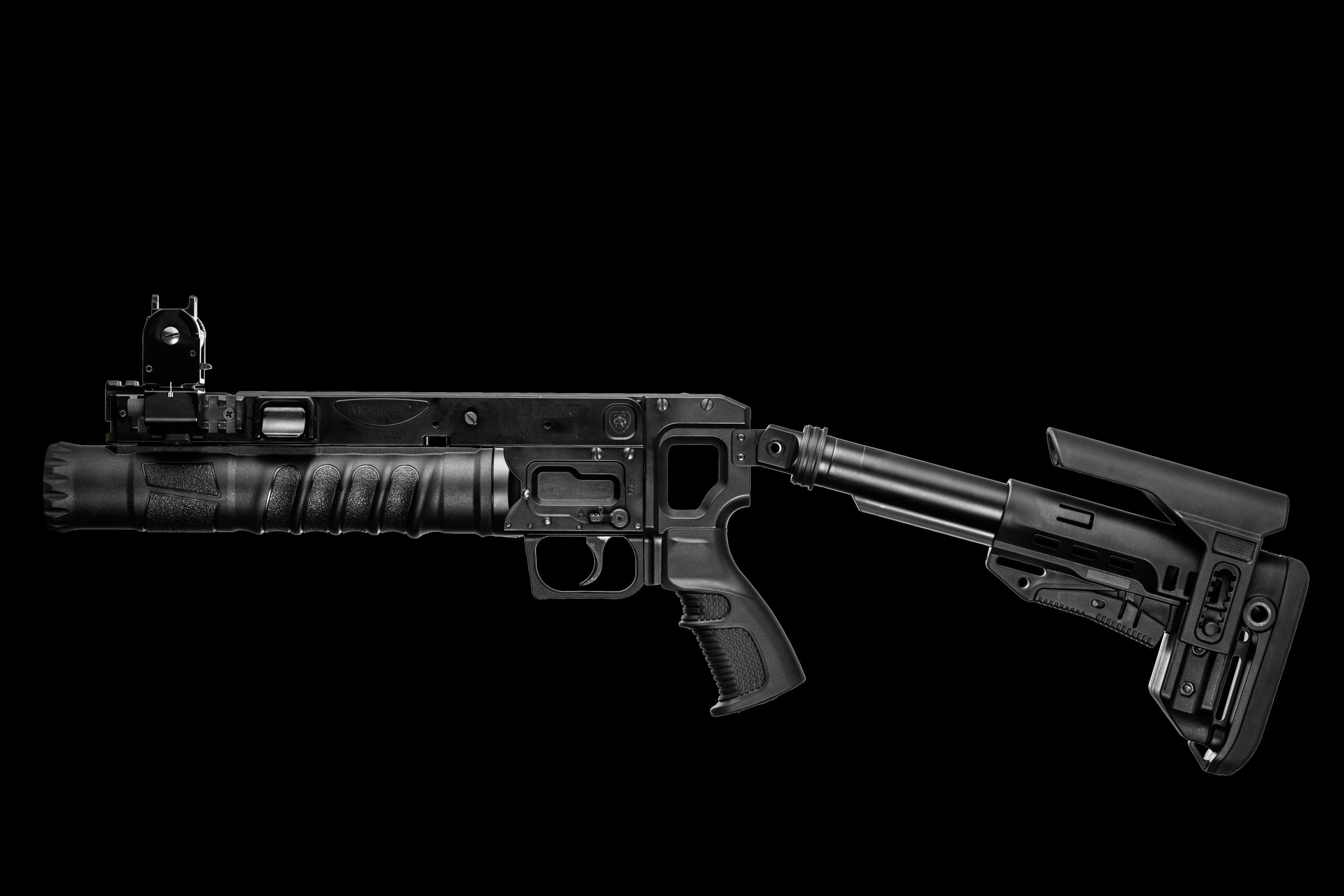

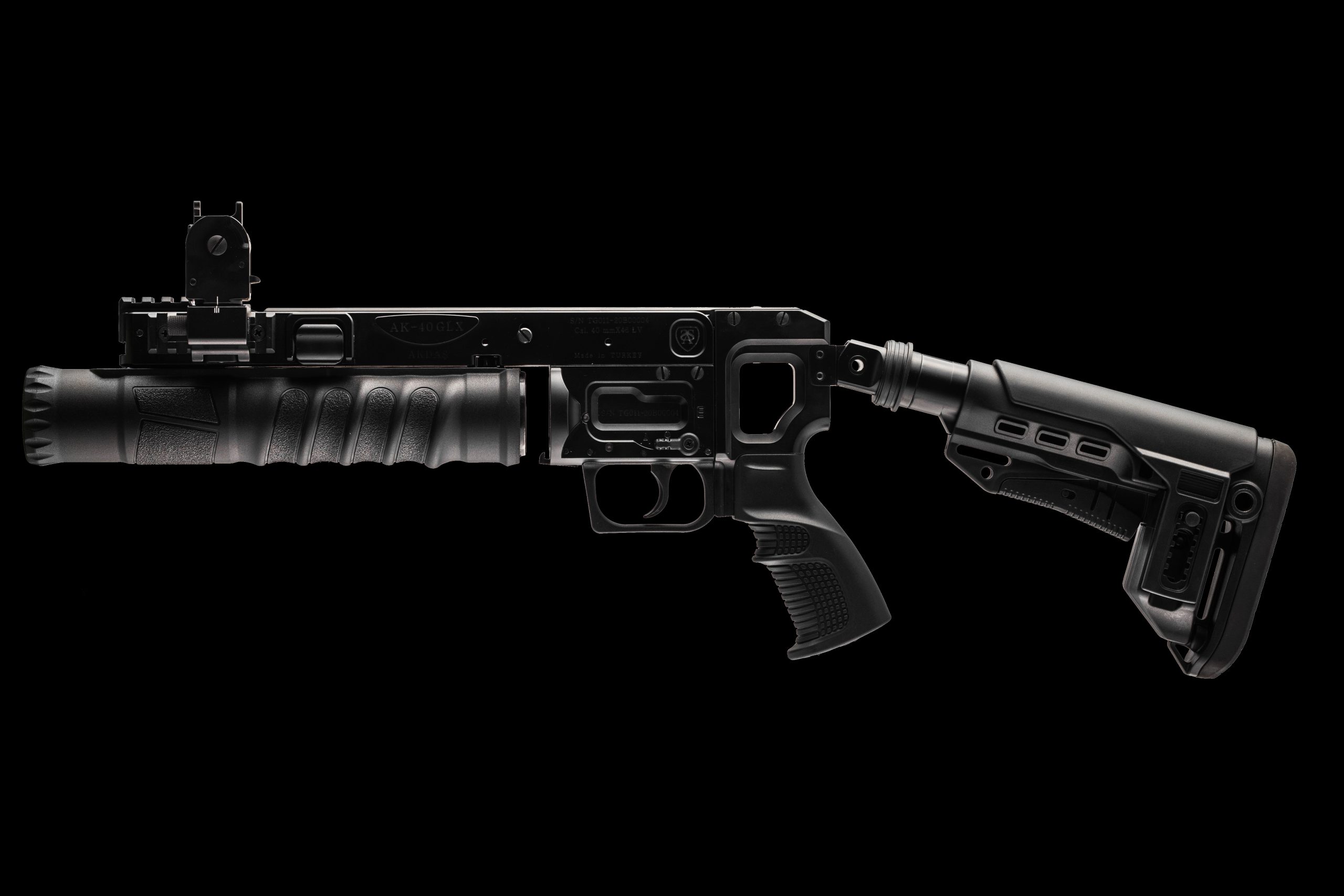

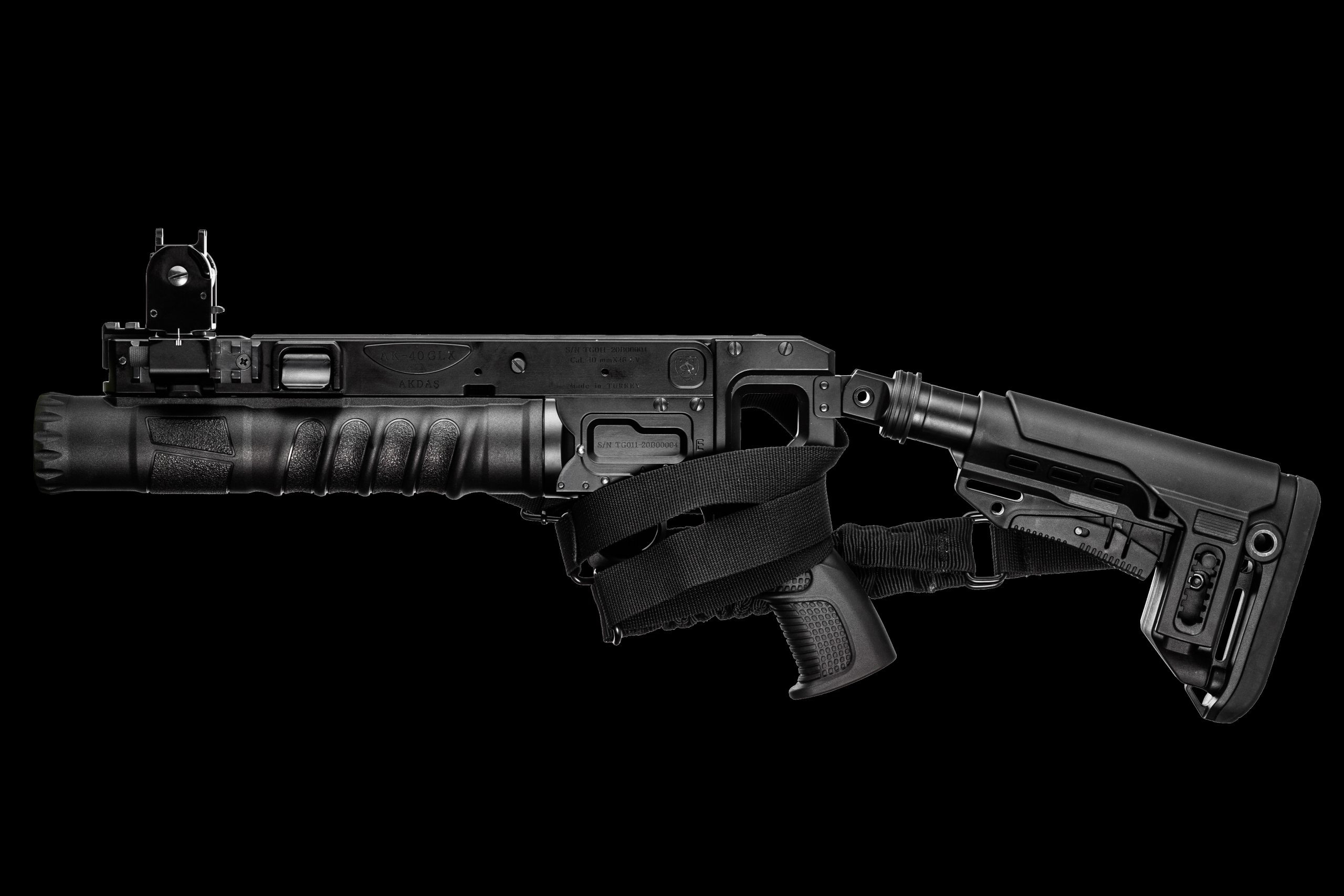

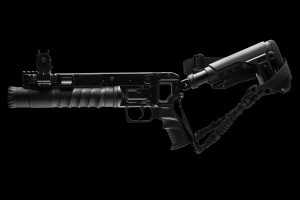

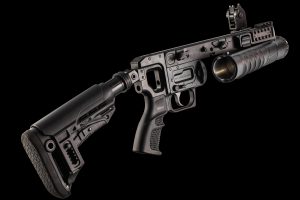

In addition to the utilization by attaching to an infantry rifle, capability of using as a standalone grenade launcher gun comprising a telescopic stock

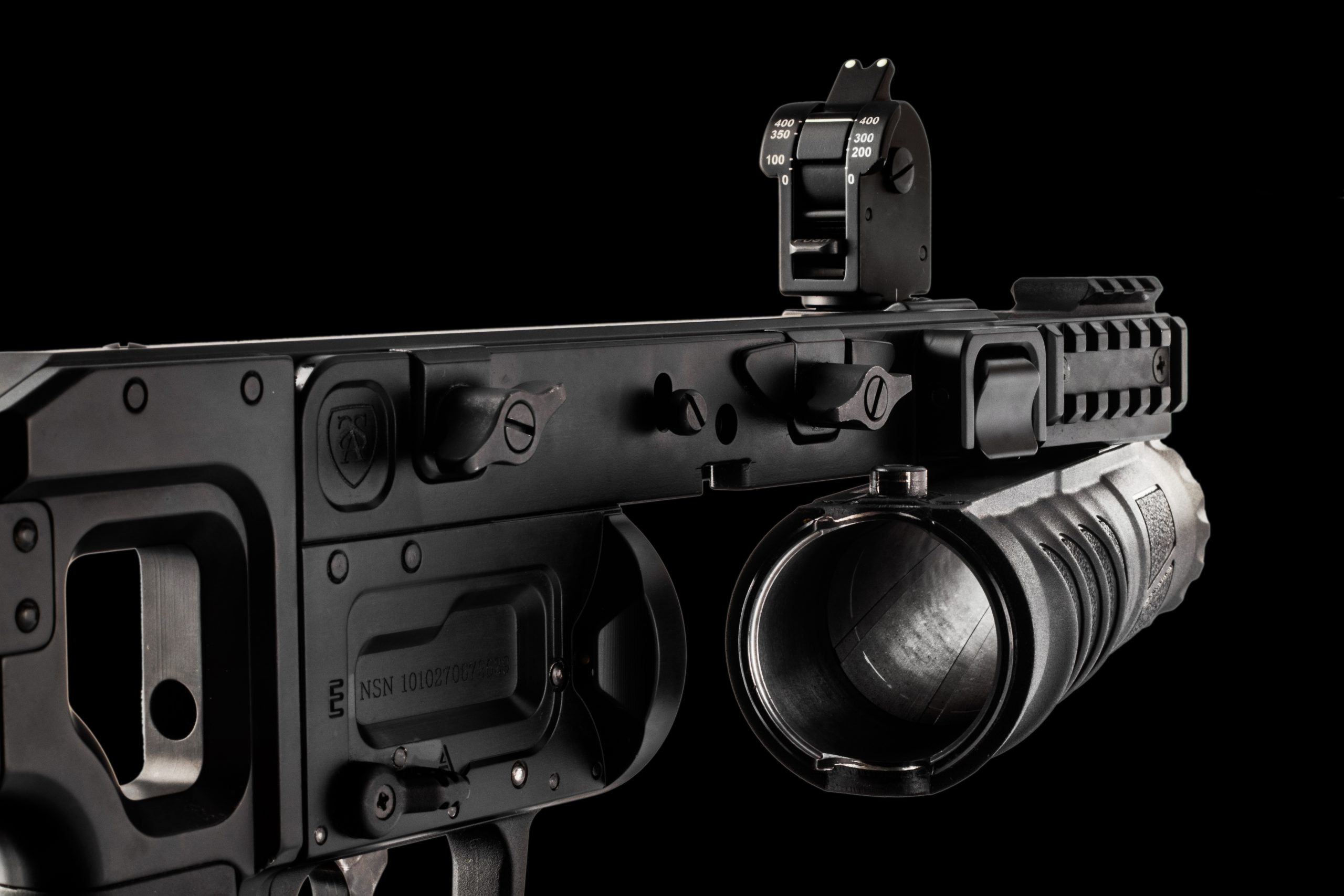

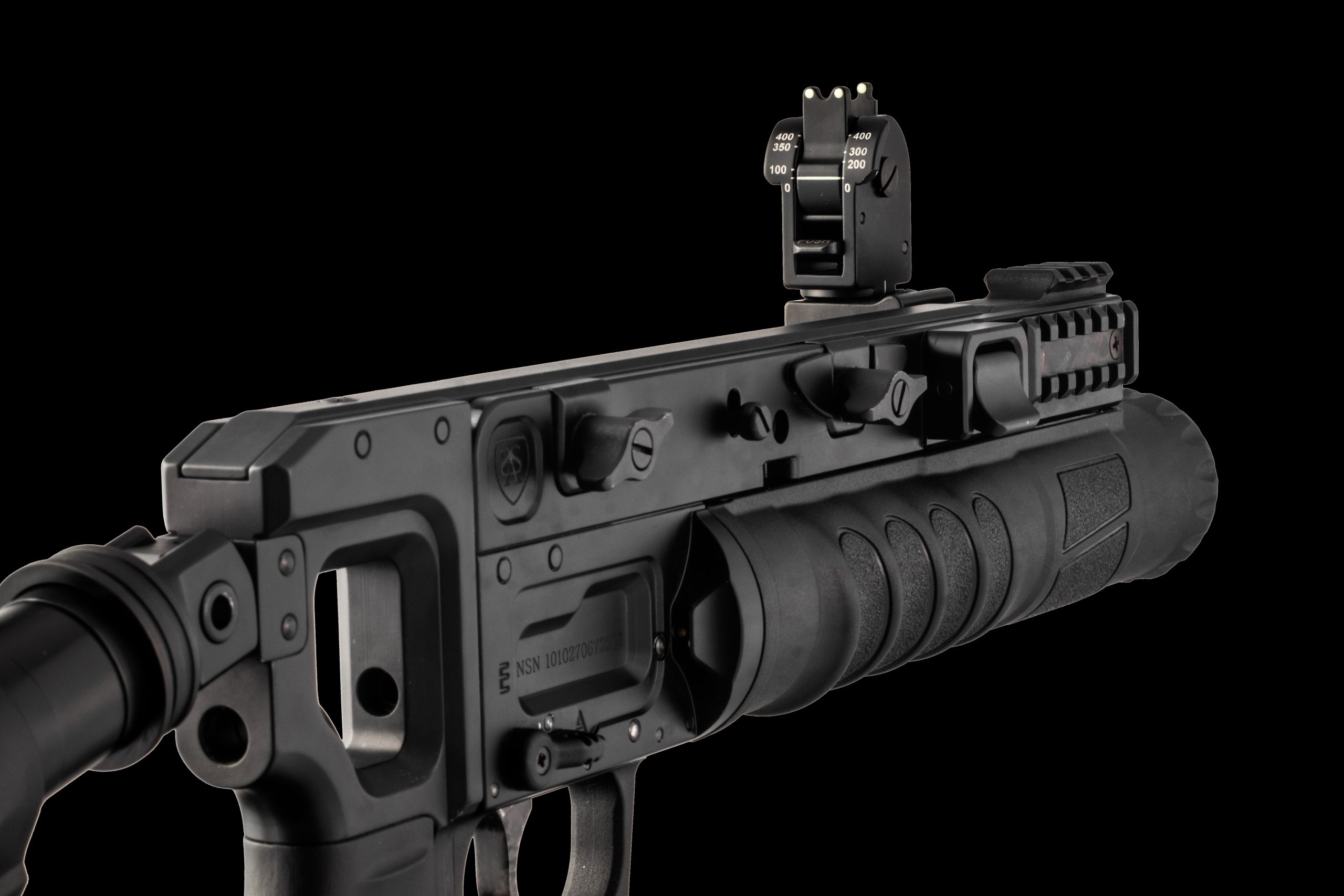

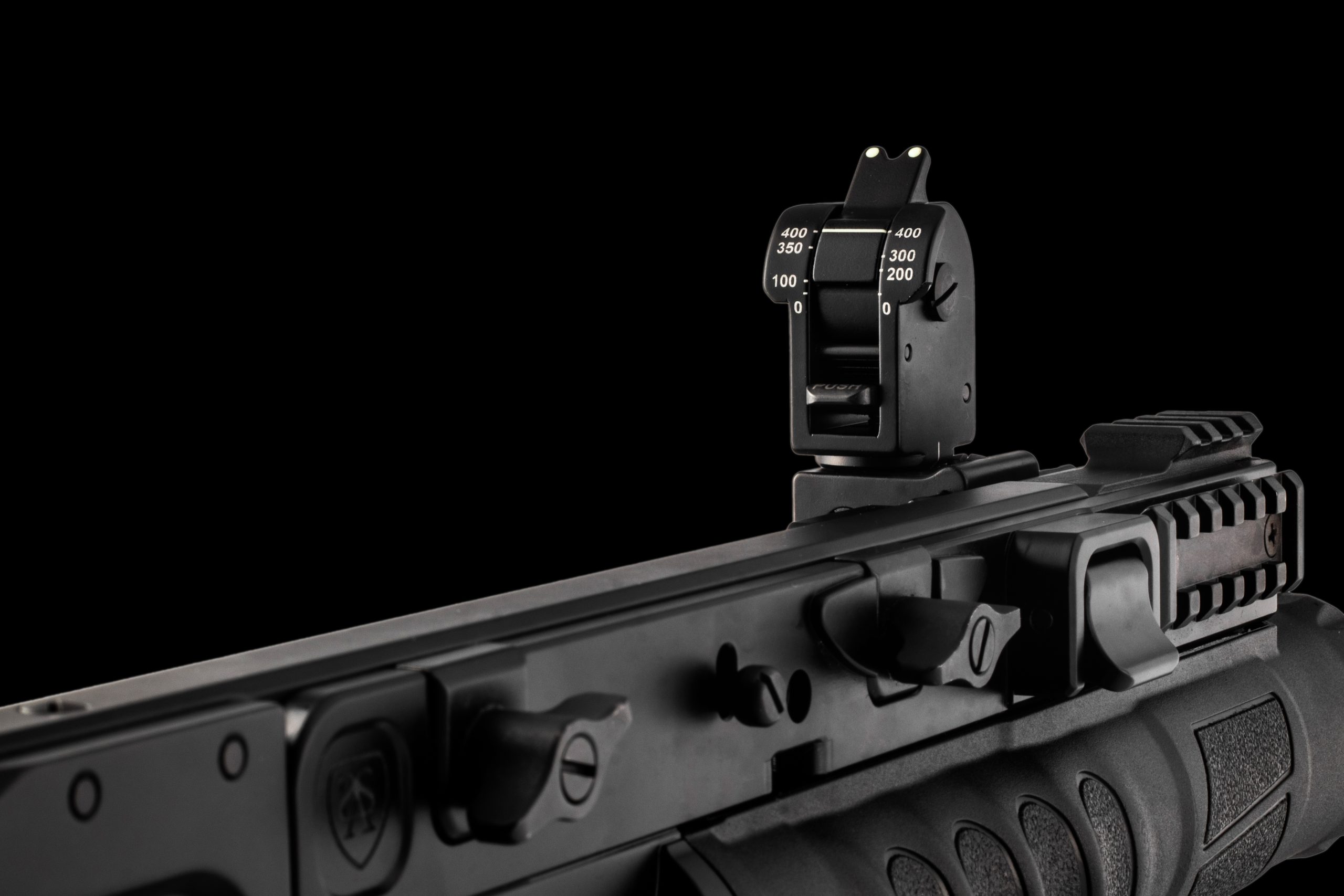

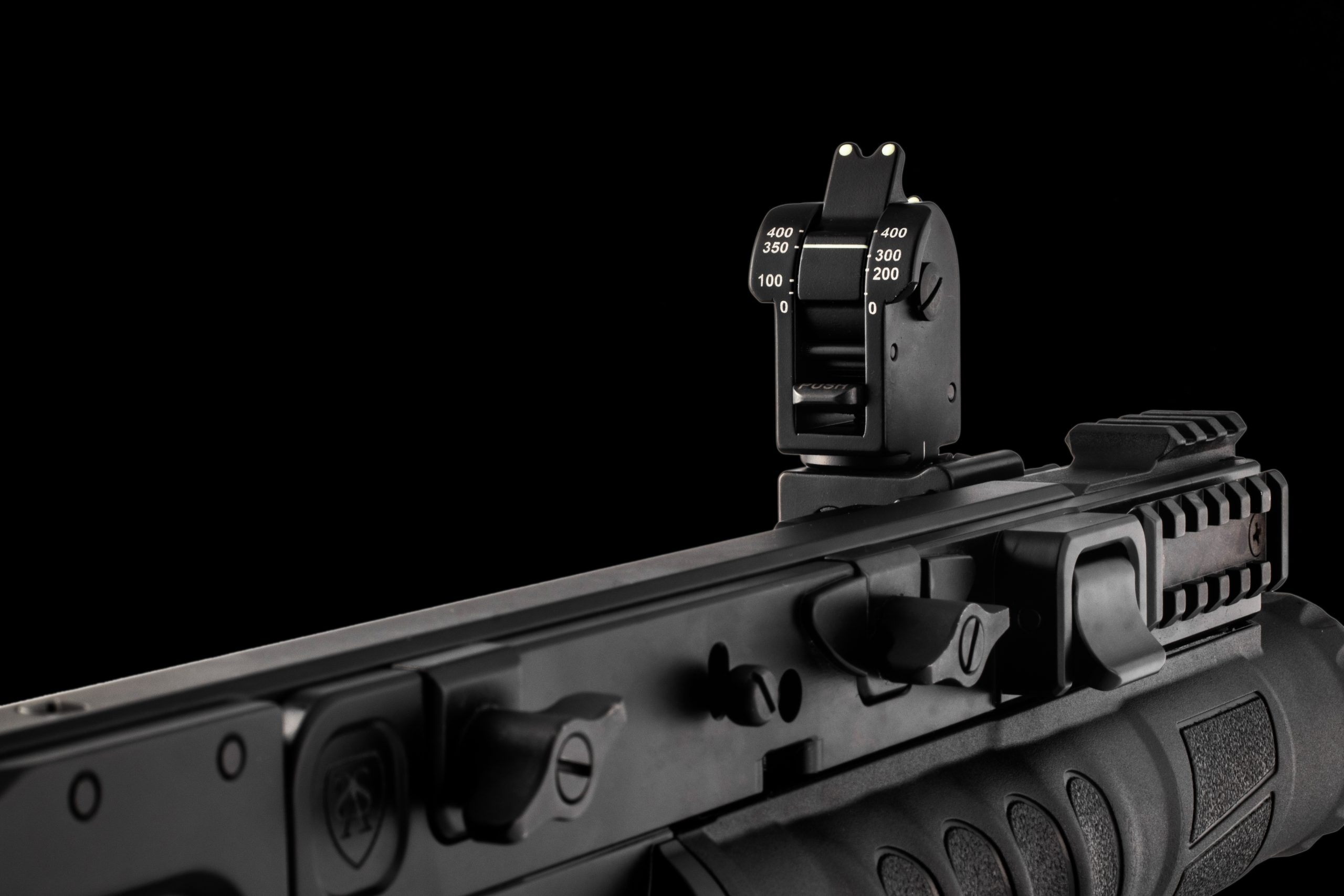

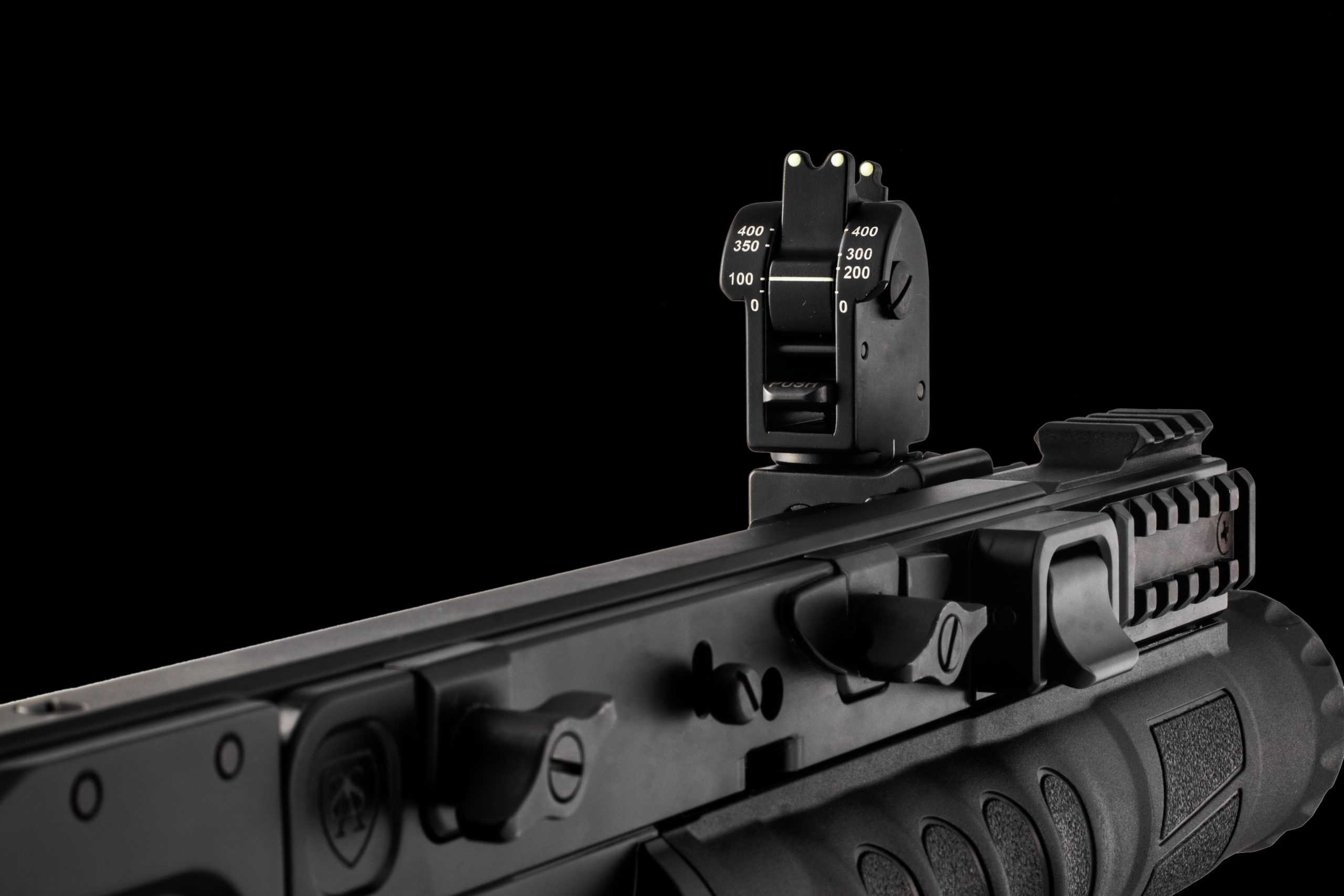

Double-sided indicator that shows whether the grenade launcher is loaded or unloaded Mechanical sight system with night firing capacity and ability to be assembled on both sides
High wear resistant, hard chrome coated barrel with mid carbon alloy that provides long barrel life span Picatinny rails on top and sides that allow additional equipment

MAIN PARTS OF THE GUN

Caliber
40 mm
Barrel Length
254 mm (10'')

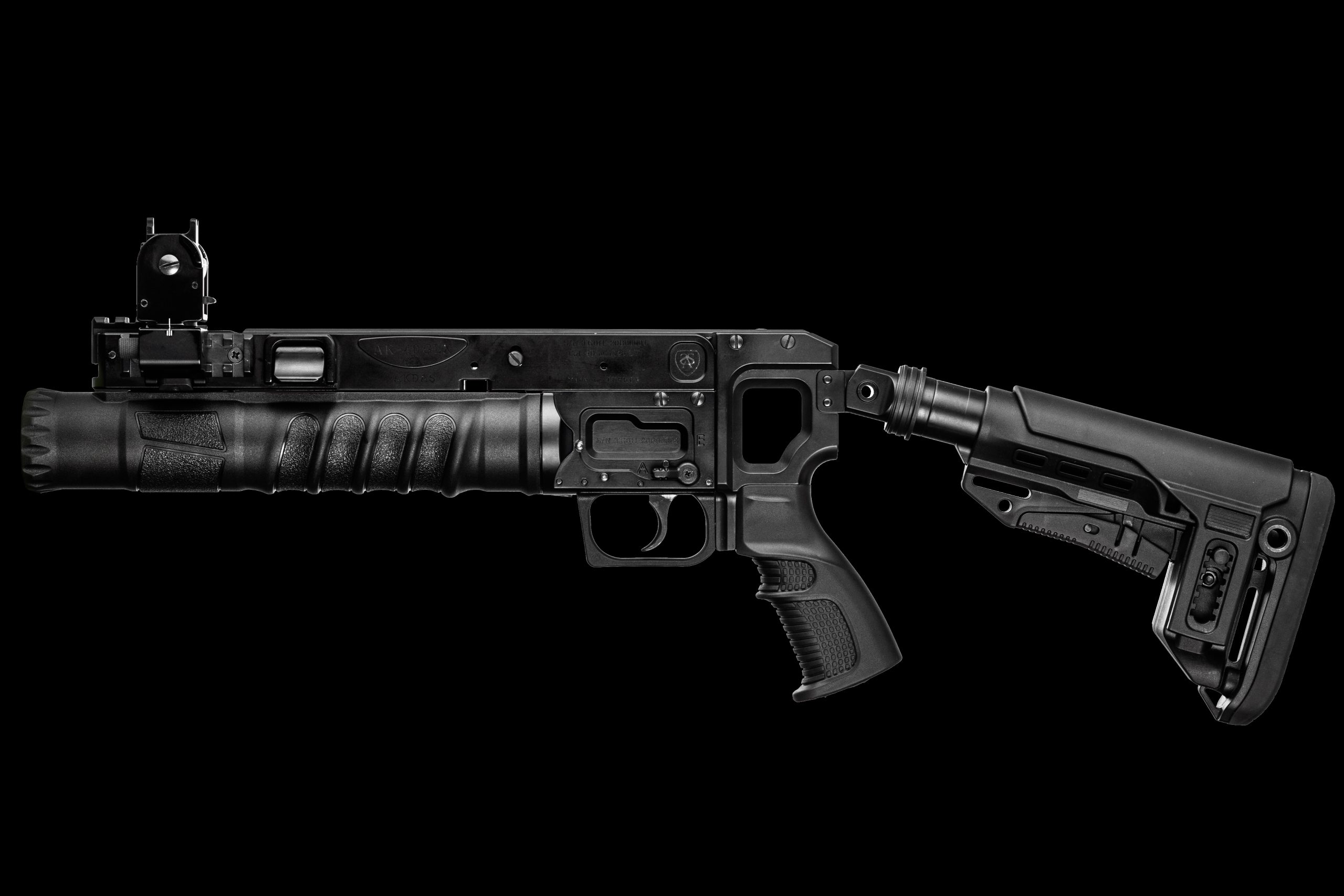

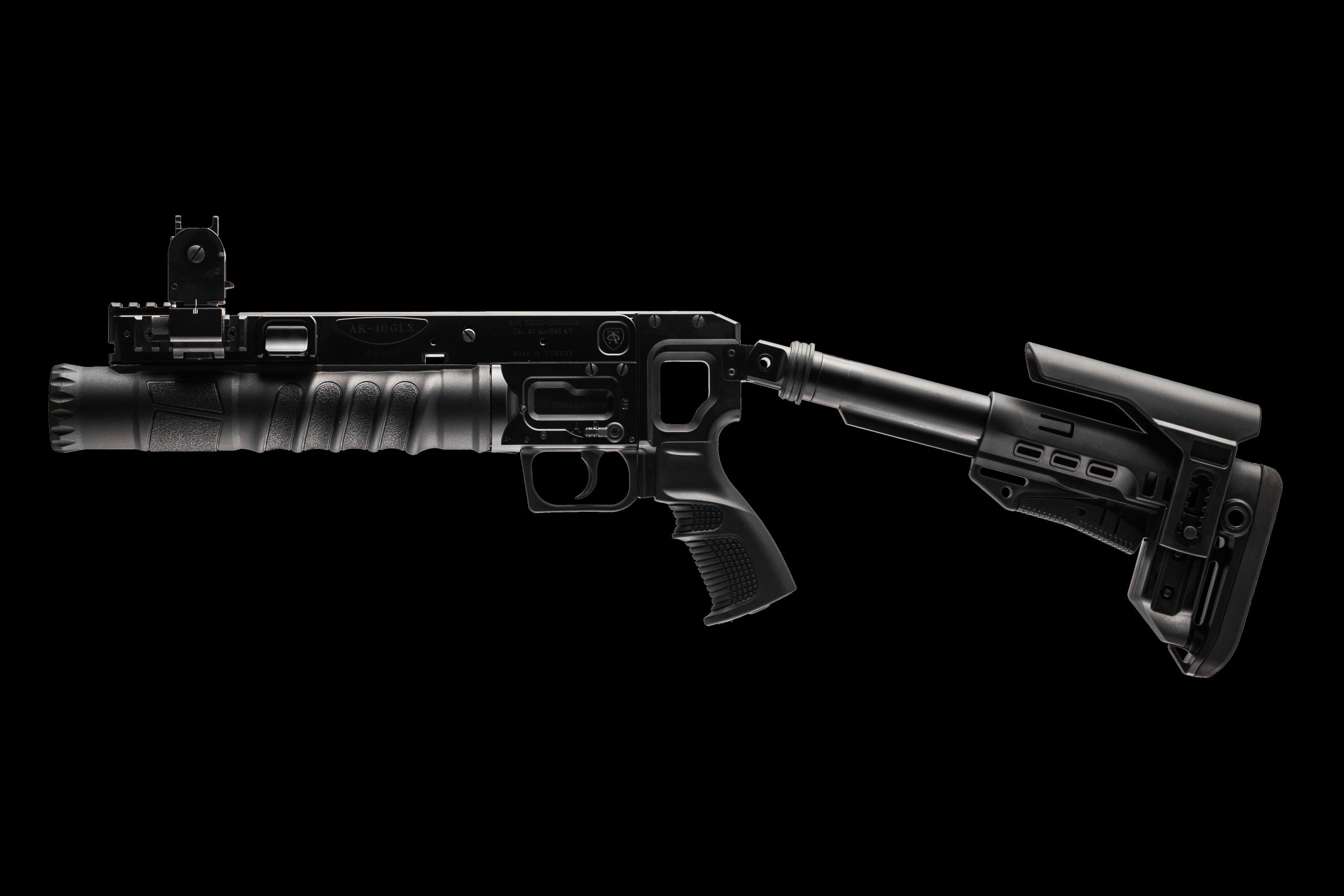

Total Length standalone (telescopic stock open)
685 mm (27'')

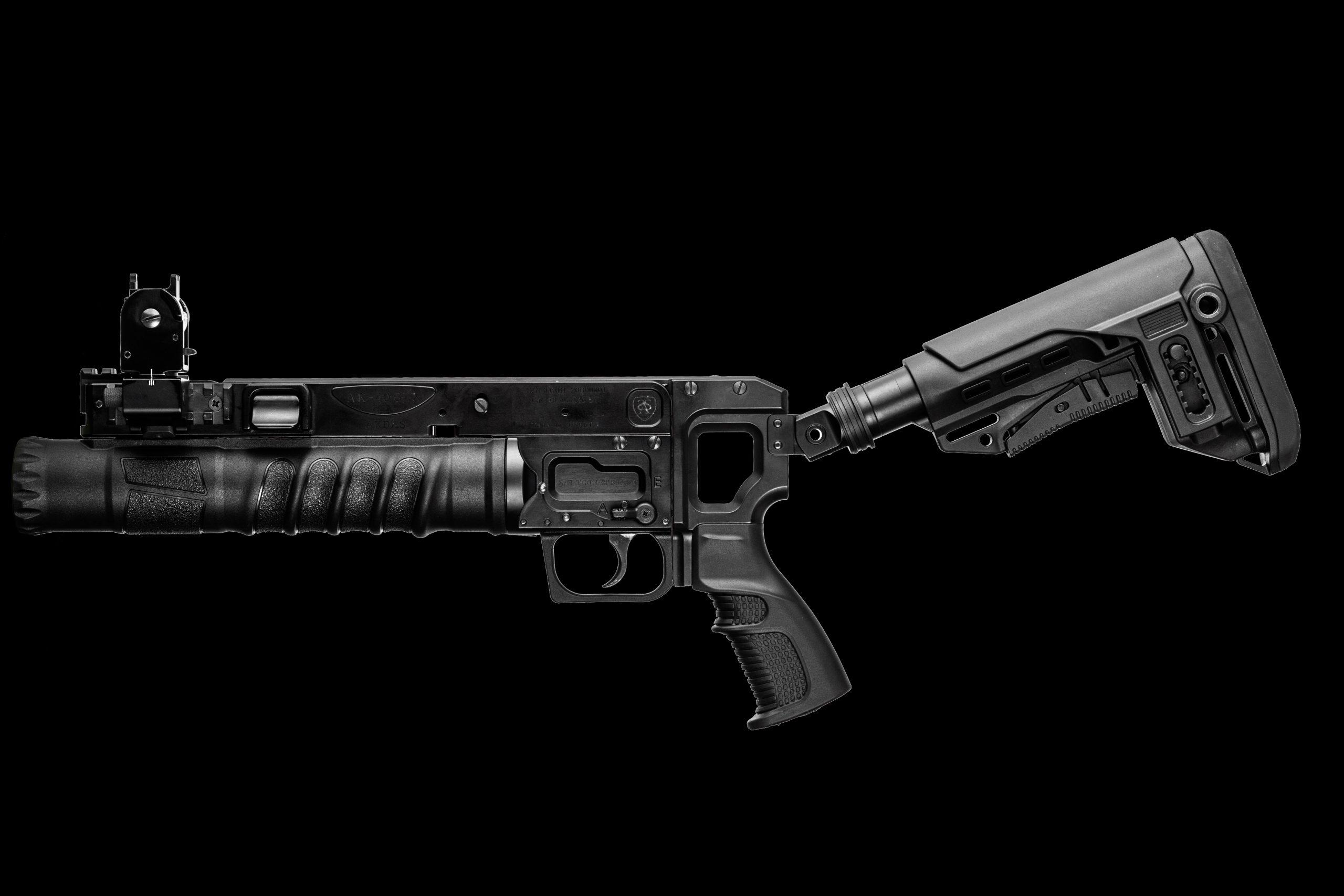

Total Length standalone (telescopic stock closed)
610 mm (24'')

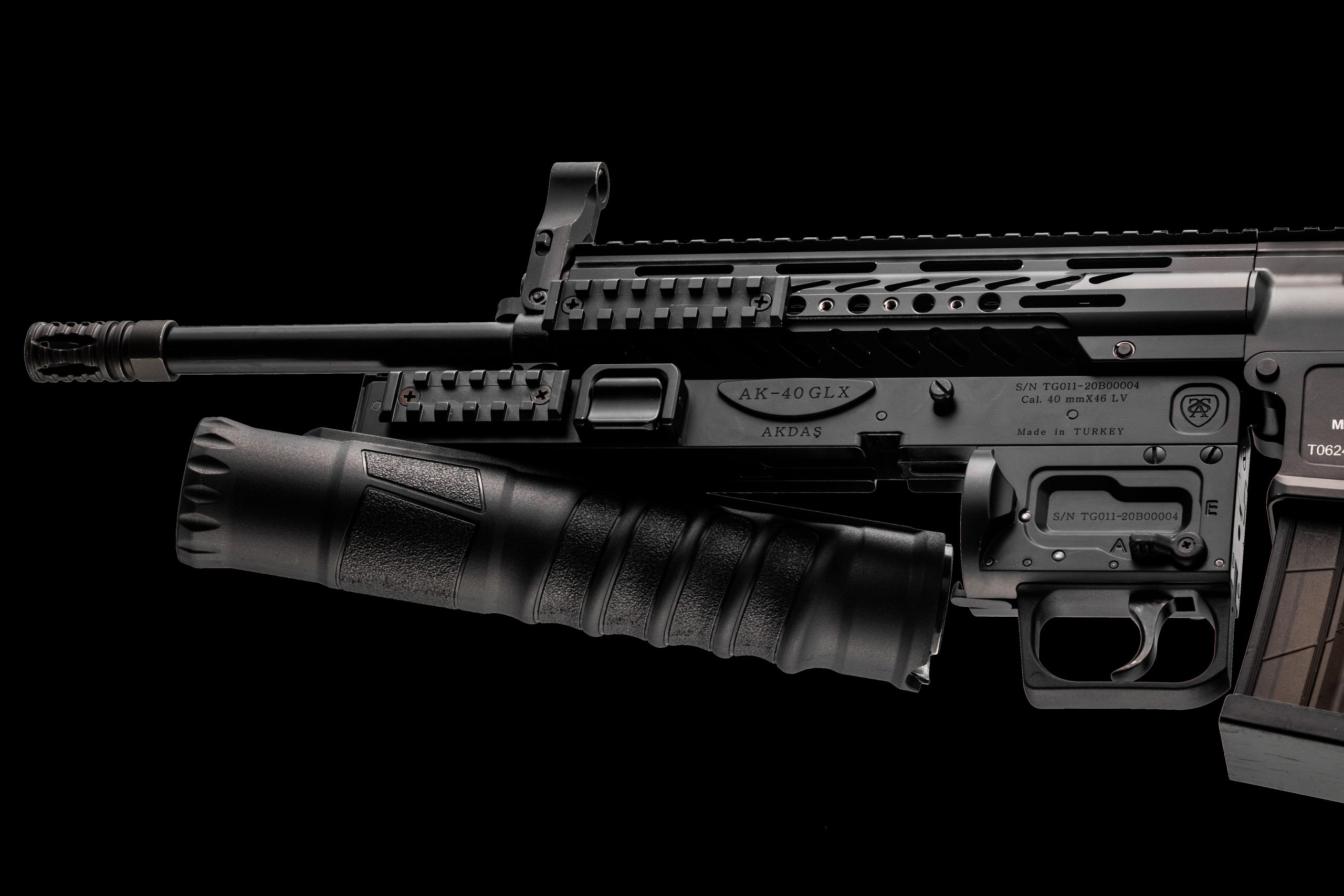

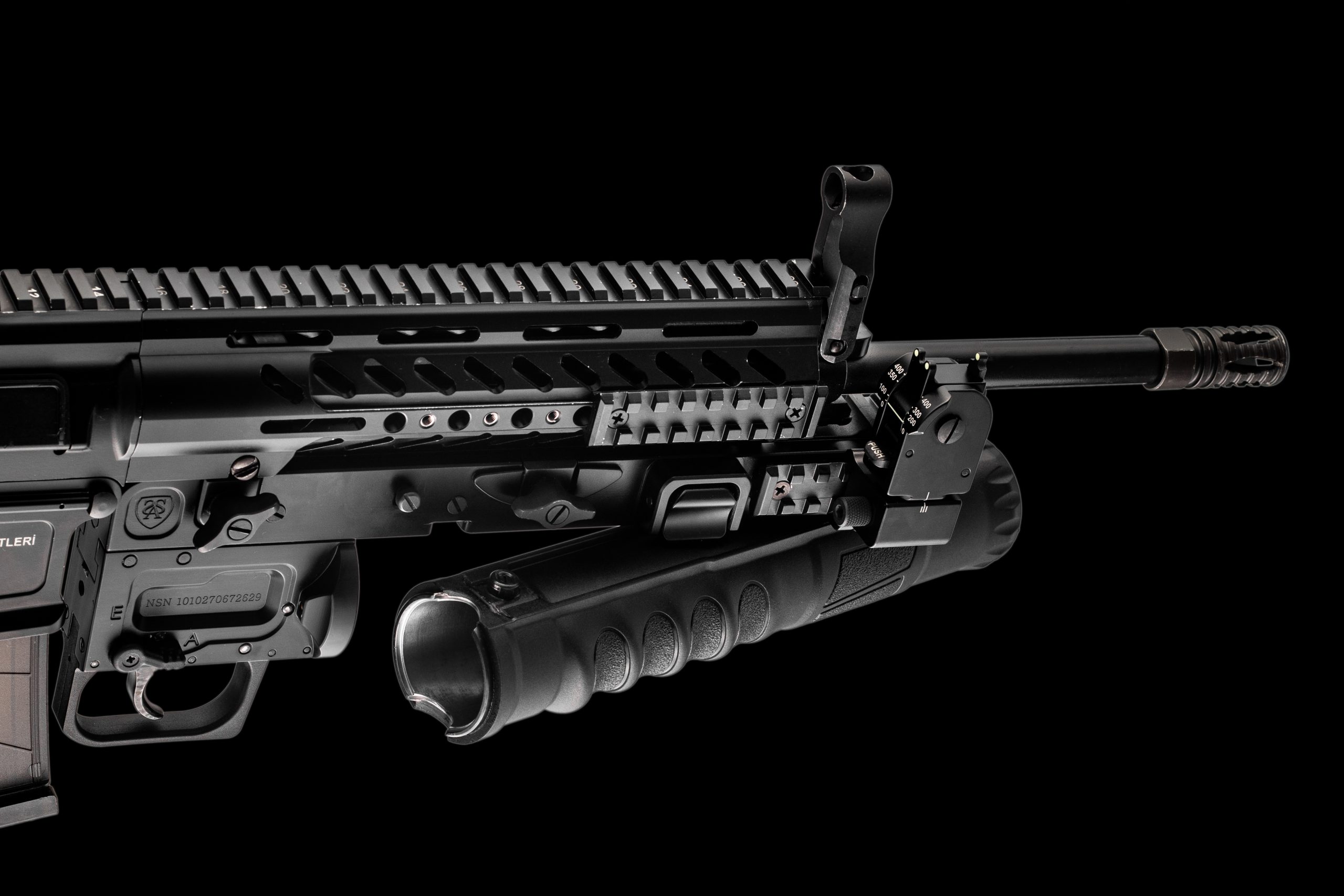

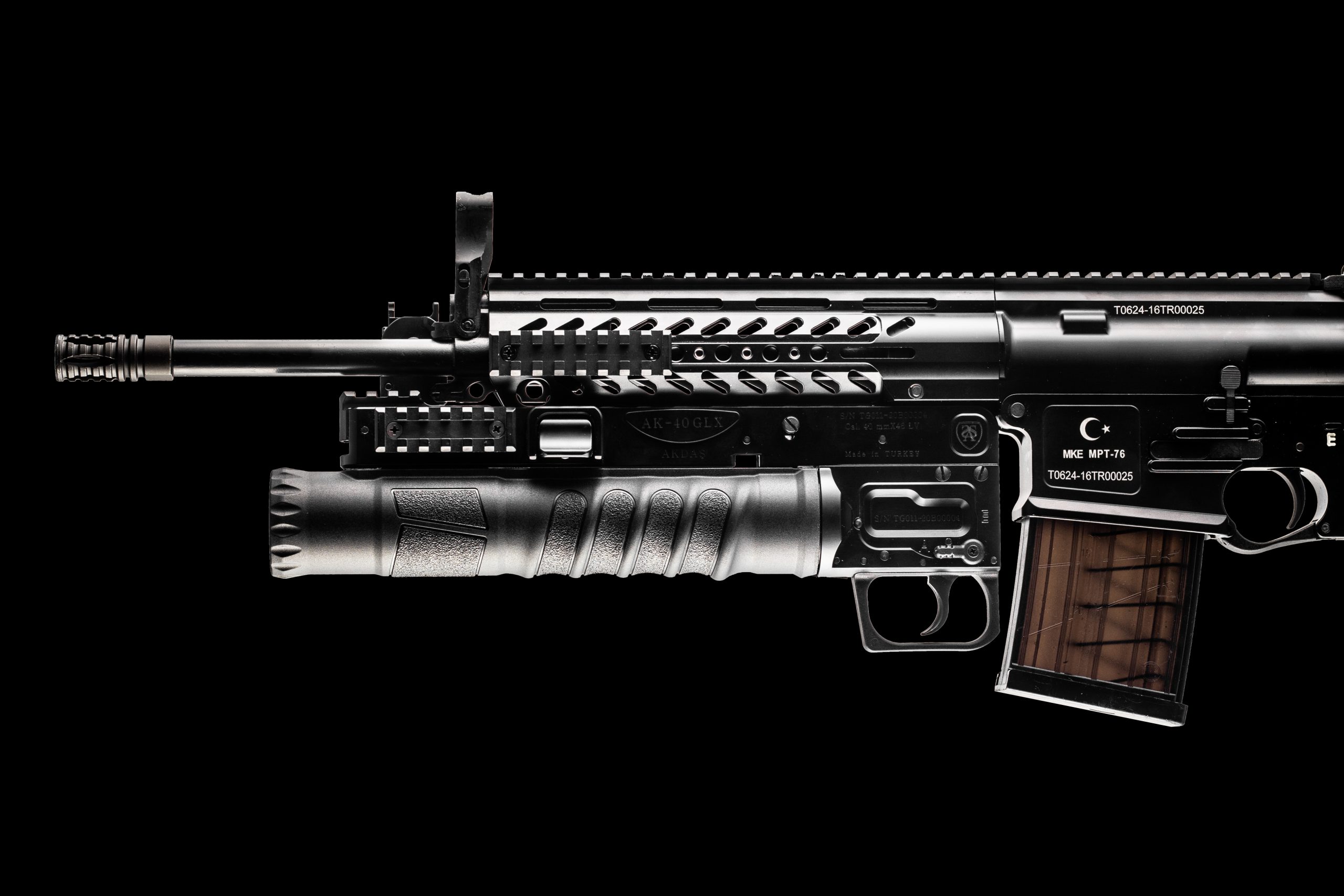

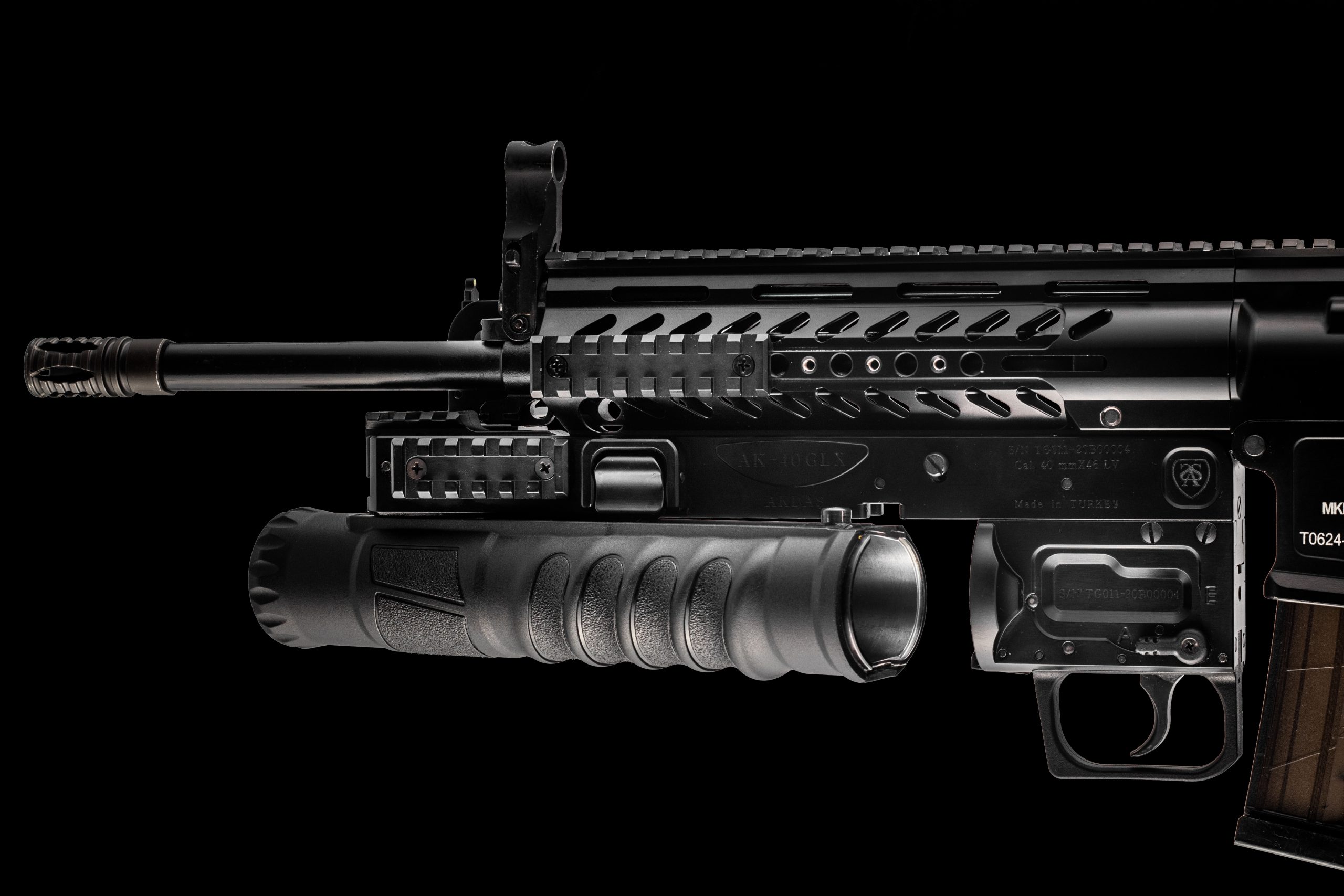

Total Length attached to mpt-76 rifle
337 mm (13.25'')
Heigth (With Stock Grip / Under Barrel)
190 mm (7.5") / 115 mm (4.5")
Width
60 mm (2.36") - 80 mm (3.15") with Manual Sigth
Weight (standalone-empty)
2700 gr
Weight (atteached to mpt-76 rifle-empty)
1700 gr

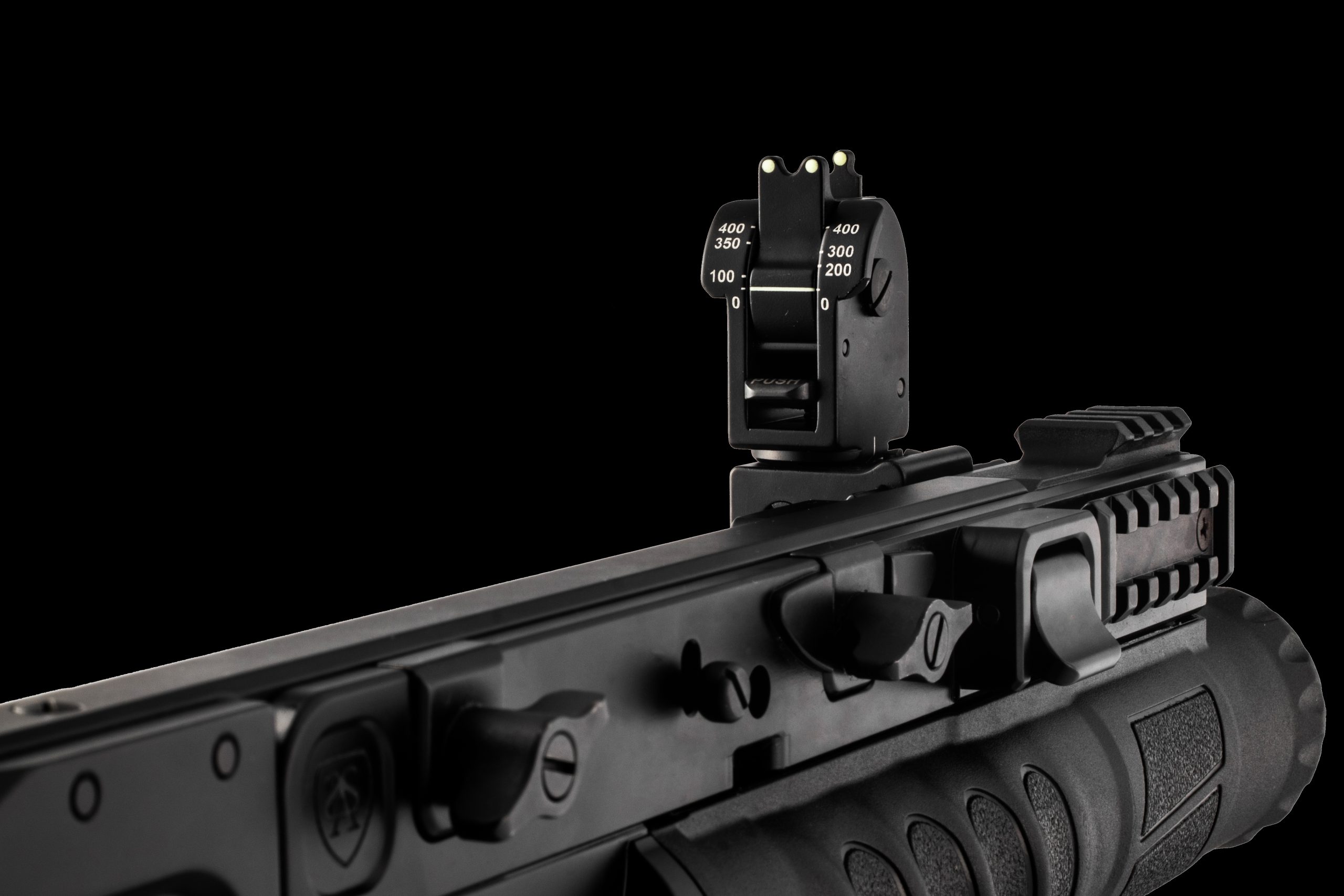

Sight system
100-400 m (100 m intervals)
Shooting mode
Single shot (both side loading & positioning wedge)
Trigger
Double Action
Shooting velocity
5-6 rounds / minute
Muzzle velocity
Minimum 75-85 m/s (±5m/s)
Effective Range
400 m / 375 m
Trigger Pull FORCE
30 - 60 Newton
Coking Force
60 - 120 Newton
Barrel Profile
SAE4140 Steel, 6 Groves RH twist 1/48"
Barrel life span
5000 rounds
Shooting pattern
Into 10 m Diameter at 200 m
Nato Stock Number
1010270716407
Type Of Ammunition
40x46 mm new and old generation low velocity (LV) ammunition of any type

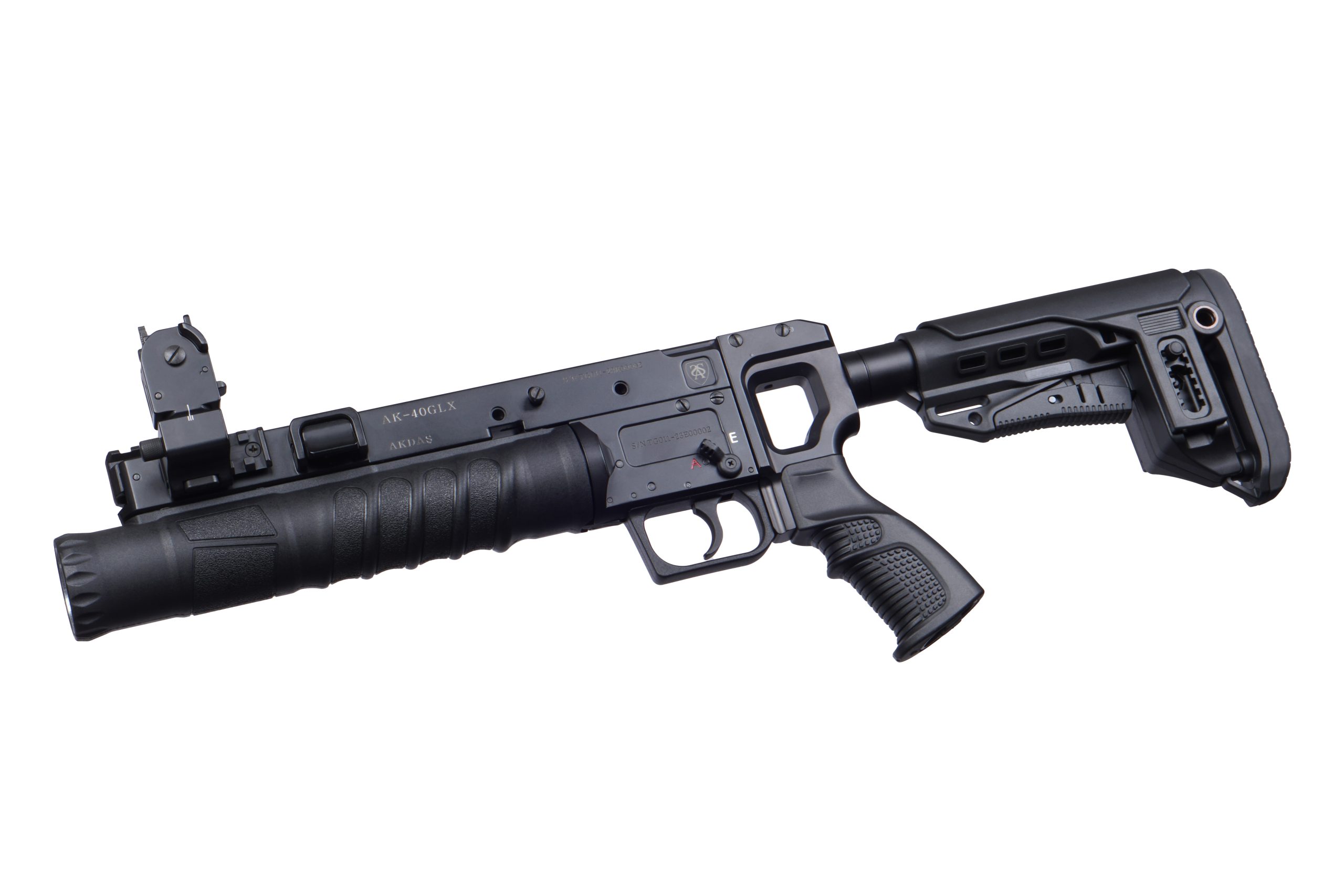

AK-40GLX Grenade Launcher
