AK-40MGL _{Grenade Launcher}

3D View User Manual

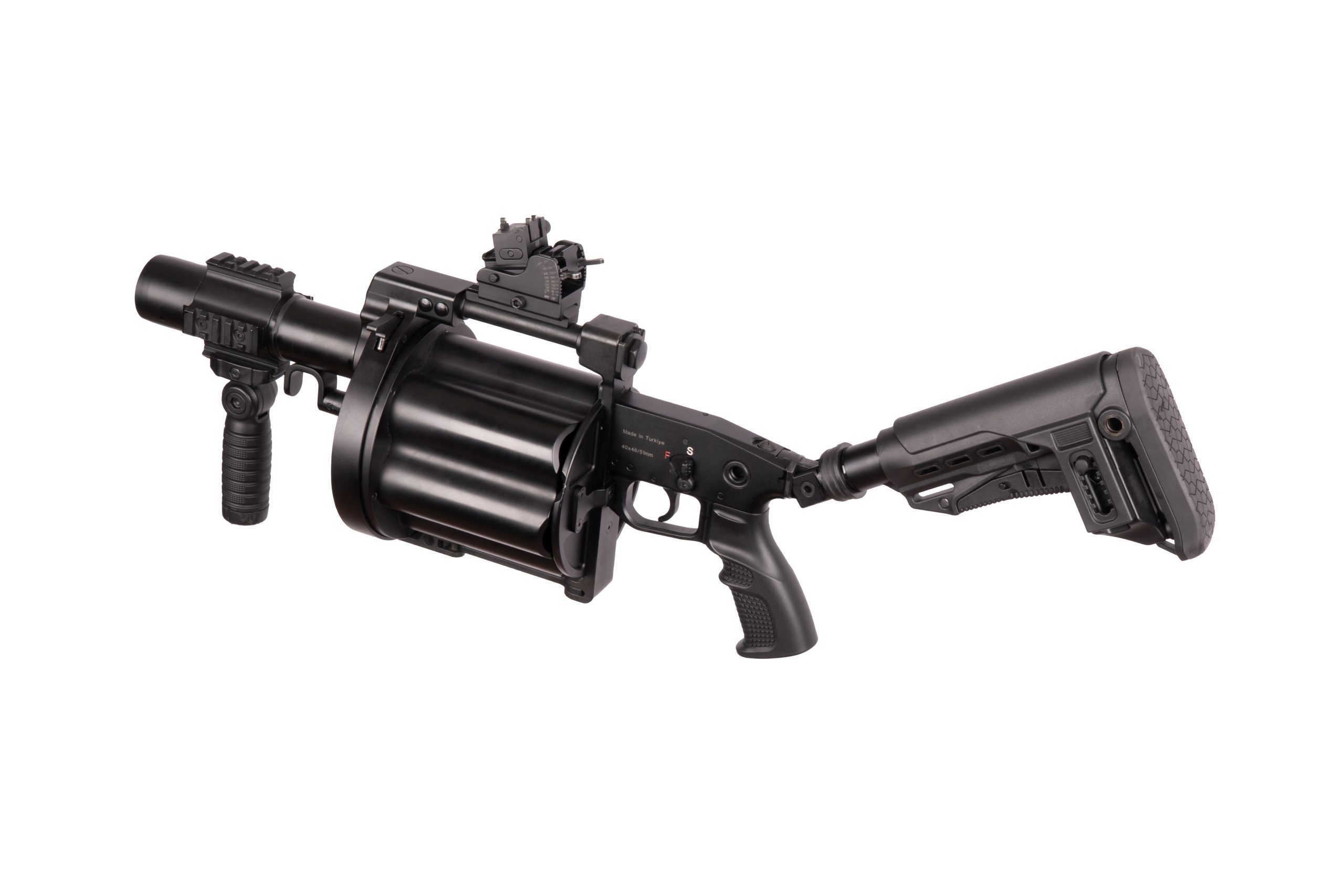

BASIC SPECIFICATIONS

Lightweight and ergonomic design for ease of use and transportation

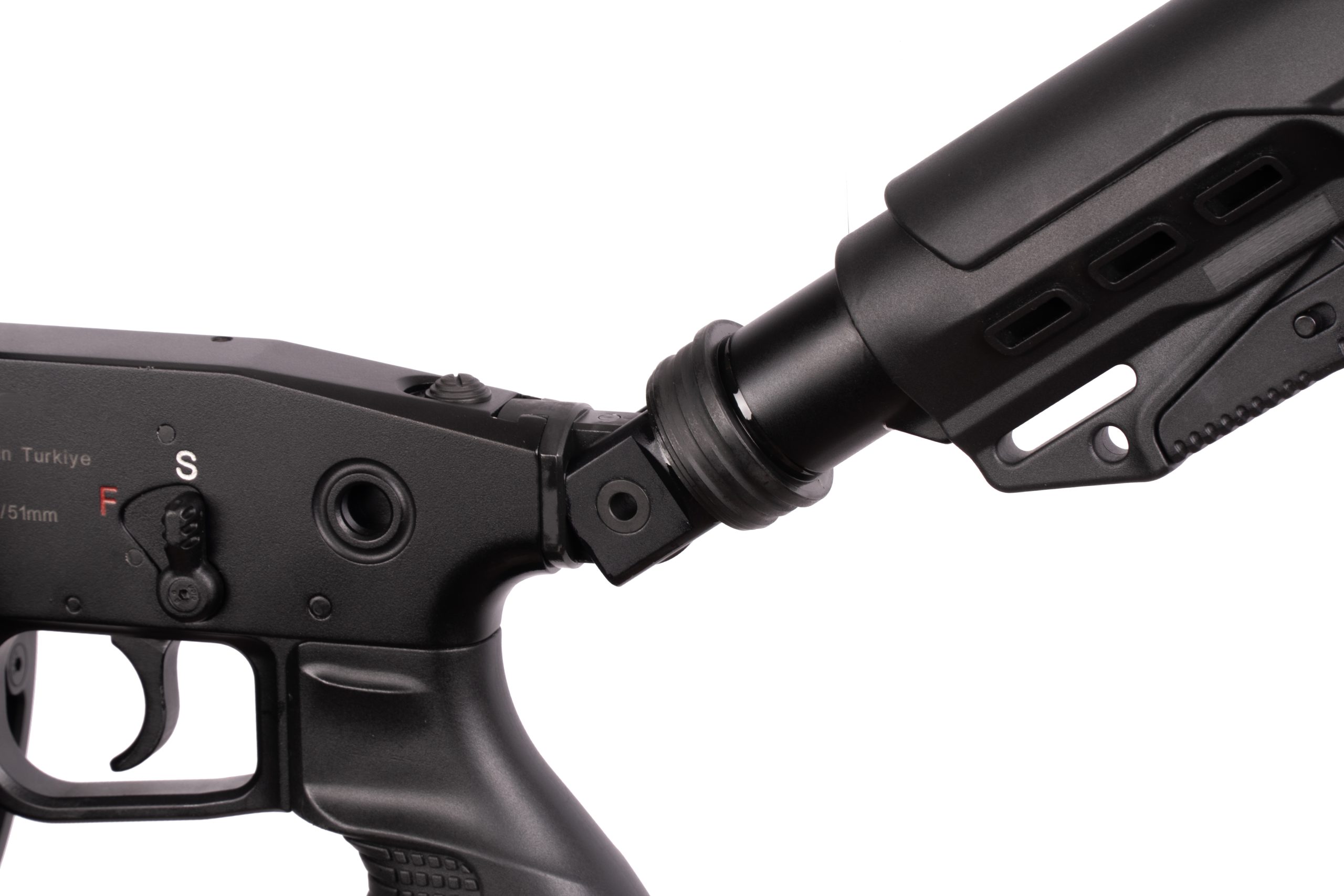

Two-way safety latch
Angled stock for faster aiming.
Digital and mechanical sighting system for faster aiming and more accurate shooting.
Medium carbon alloy, high abrasion resistant hard chrome plated barrel for long barrel life, Picatinny rail system for mounting additional equipment on top.
Gas recoil and manual operation system

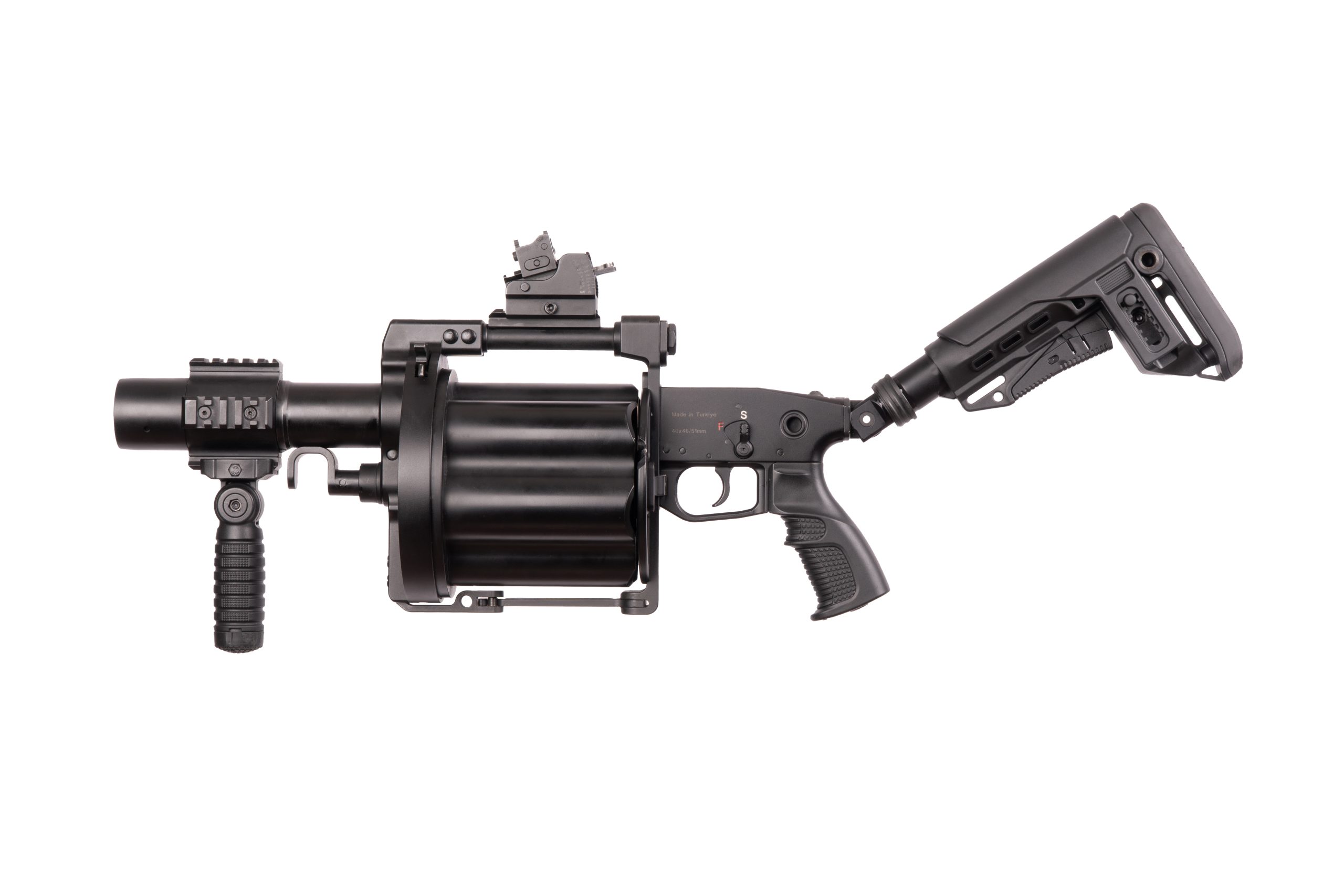

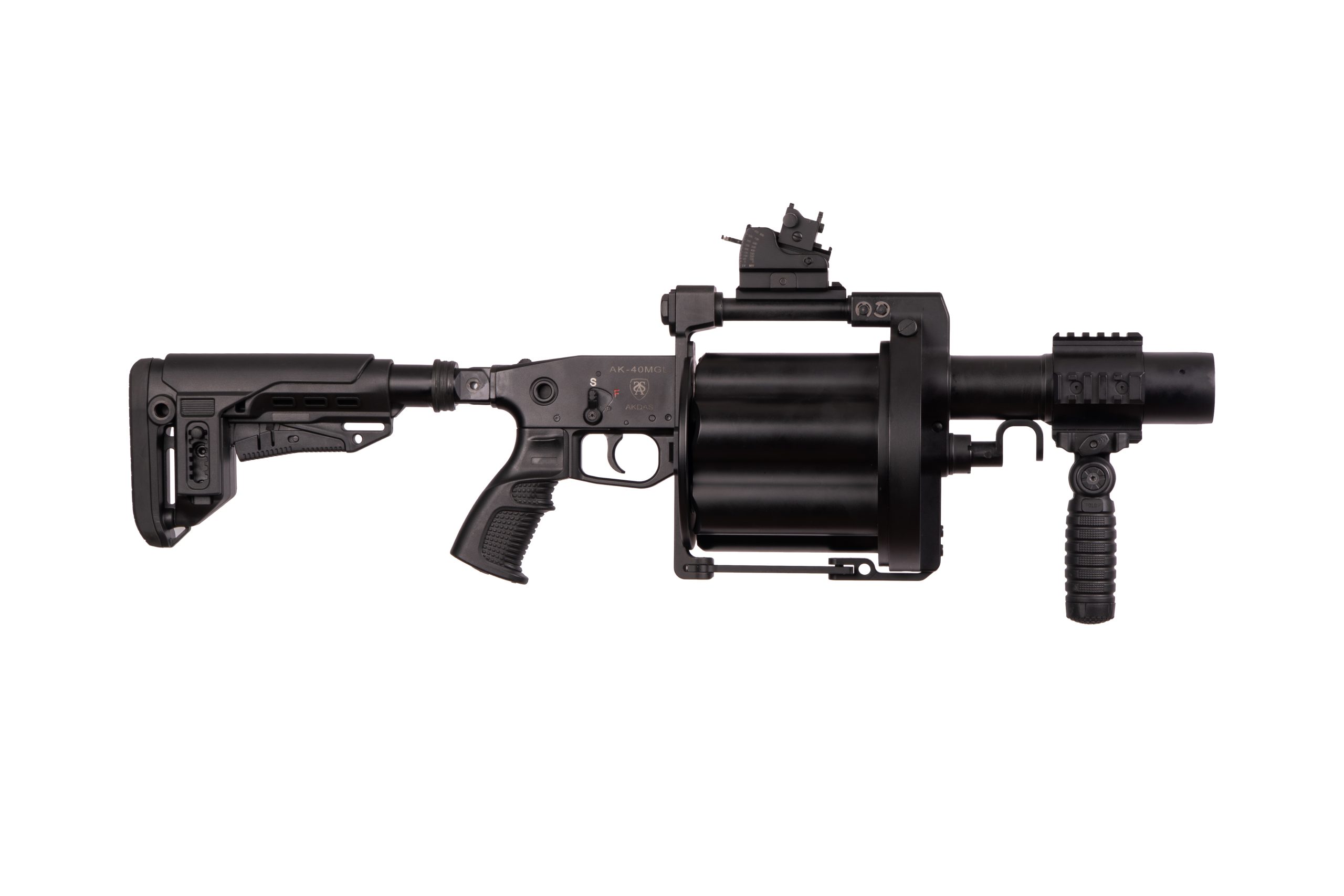

MAIN PARTS OF THE GUN

Barrel Assembly
Lower Receiver Assembly
Upper Receiver Assembly
Stock Assembly
Sight Assembly

Technical Specifications

Operation

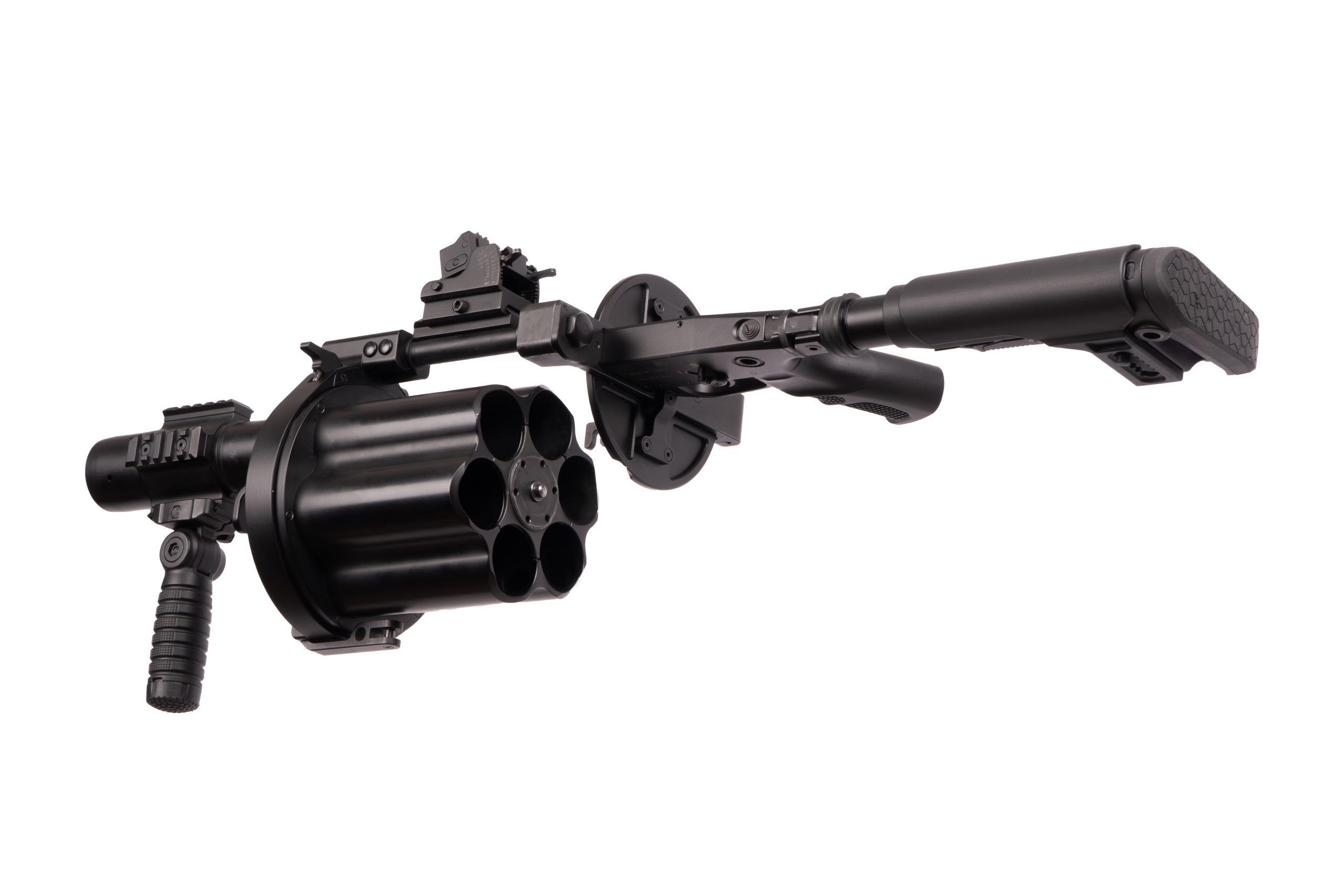

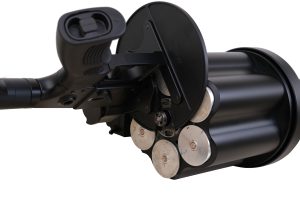

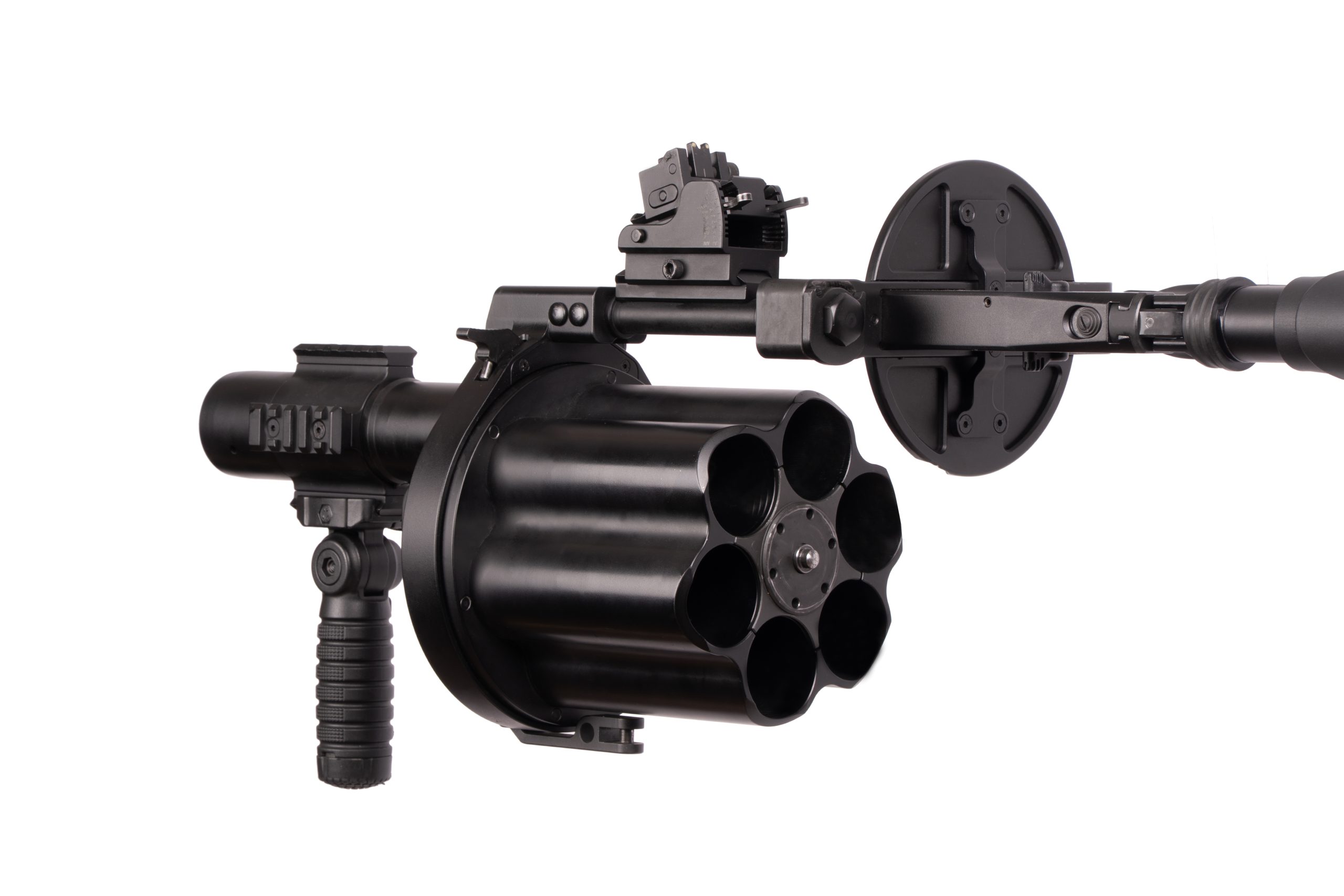

Double action trigger, which is loaded by breaking from the back of the drum, with 6 ammunition chambers, and semi-automatically operating with gas pressure, which is established by manually turning the drum.

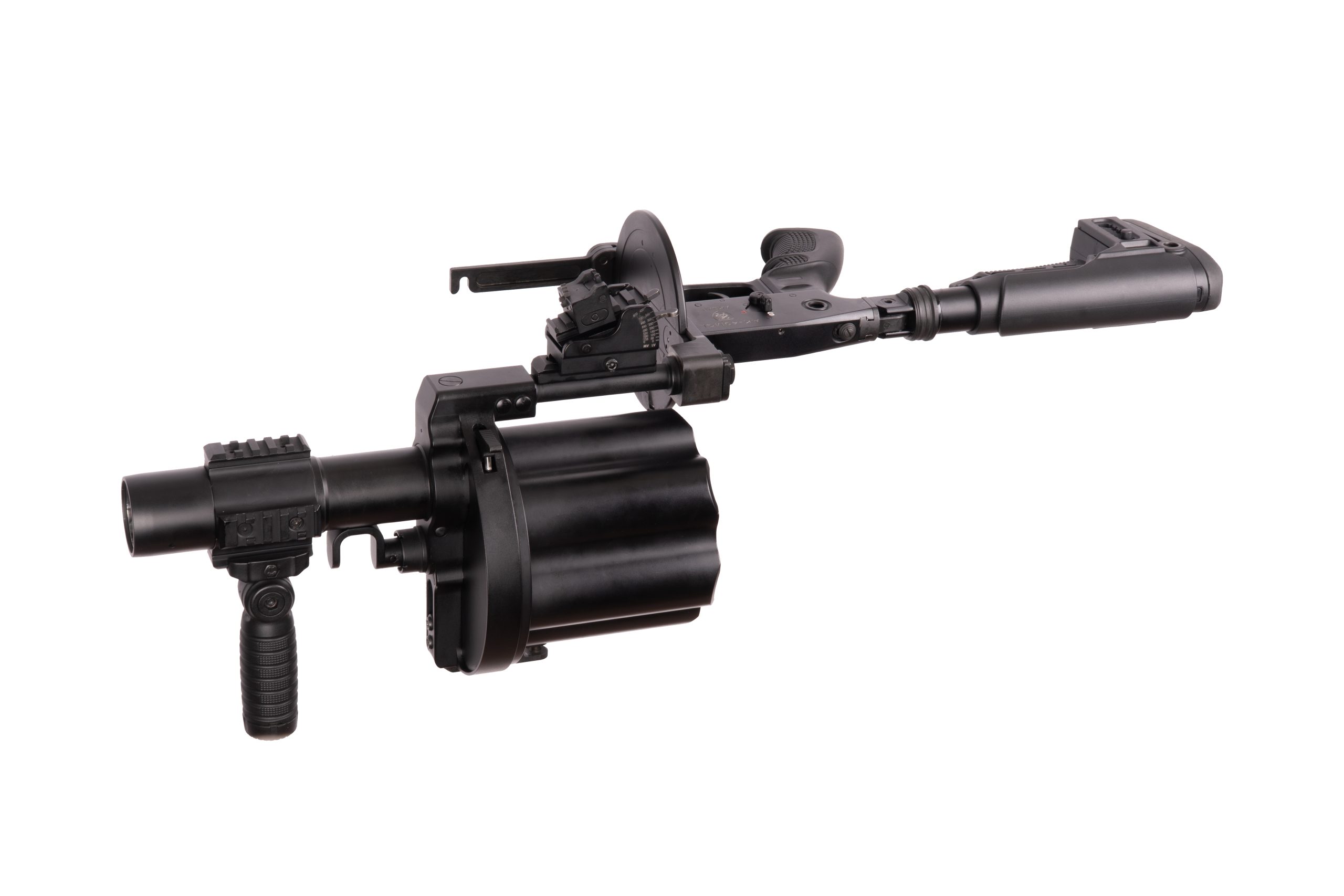

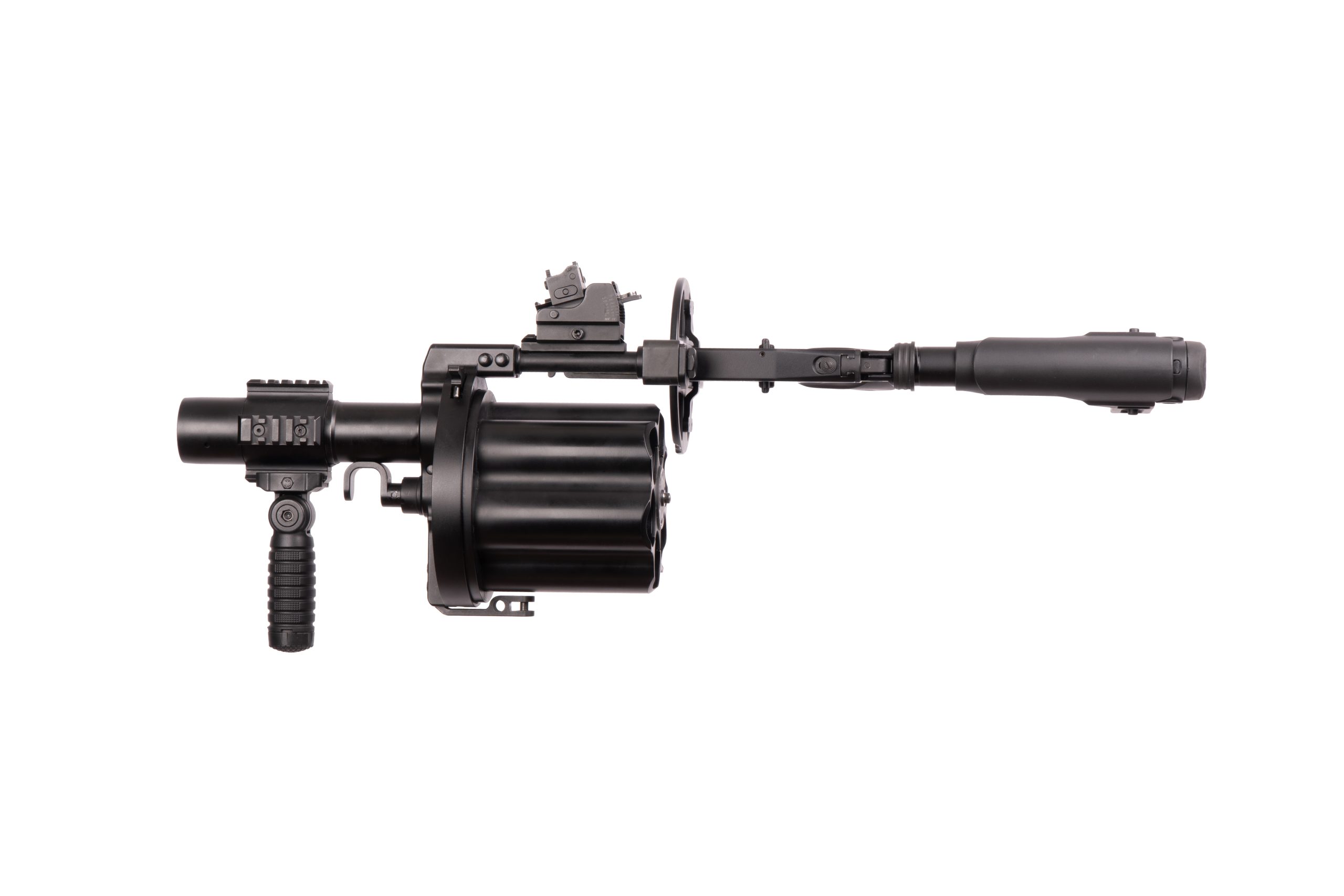

The mainspring located in the middle body of the drum is installed by turning it counterclockwise. After the ammunition is loaded, the trigger group and butt assembly are closed and ready to fire. After firing, it works by opening the lock with the upward movement of the interconnected lock and gas piston, turning the drum to the right and catching the next ammunition in the firing position.
Calibre
40 mm
Barrel Length
203 mm (8")
Drum Cylinder Length
141 mm (5.5")
Total Lenght(Stock Extended)
823 mm (32,4")
Total Lenght(Stock Collapsed)
750 mm (29,5")
Total Lenght(Witout Stock)
490 mm (19,2")
Weight (without - with stock)(empty)
5460-5750 gr
Dimension of launcher
L:823mm max H:300mm W:172 mm
Mode of Fire
Semi - Automatic and manual cycling
Sight System
Mechanics and Digital(Optional)
Shooting mode
Revolver Gas Operating Semi Auto
Muzzle Velocity
LV 75 m/s & MV 100 m/S (±5m/s)
Ammunition Feeding
Rotating cylindrical drum
Effective Range (max)
LV grenades 400 m / MV grenades 800 m
Trigger pull FORCE
4.5 - 6 Kg (45 - 60 Newton)
Trigger
Double-action Trigger
Barrel life span
5000 rounds
Barrel Profile
6 Groves RH
Shooting Pattern
Into 10 m diameter at 200 m
TYPE OF AMMUNITION
40x46 mm Low Velocity (LV) & 40/51 mm Medium Velocity (MV) less than 140 mm
