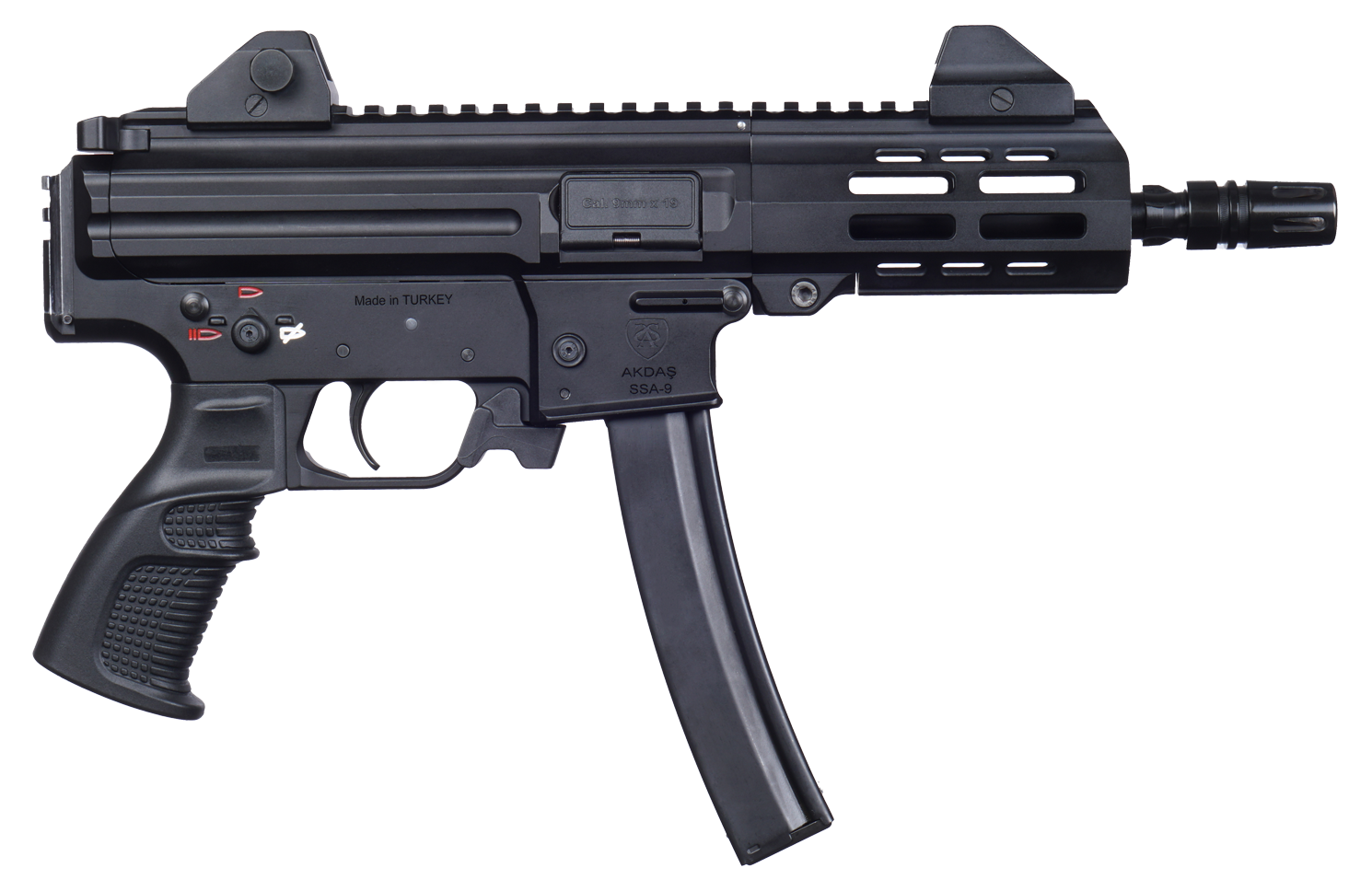

SSA-9 Full-Auto Pistol
3D View
The SSA-9 is designed by Akdaş Arms for use by the Armed Forces and law enforcement forces, especially during operations in residential areas. It is lightweight, ergonomic and practical. The SSA-9 has barret lengths of 6.5″. 8″. 10″. 12″ and different easily detachable stock systems depending on the area of use and need. The Picatinny rails on the top and the M-Lock feature on the bottom and sides of the barrel allow the use of compatible accessories. This 9×19 mm submachine gun features a blowback perforated, closed and unlocked bolt for more stable and accurate shooting.
BASIC SPECIFICATIONS
- Light and ergonomic design for ease of use and transportation
- High wear resistant, hard chrome coated barrel alloy that provides a long barrel life span
- Different barrels lenghts for different use

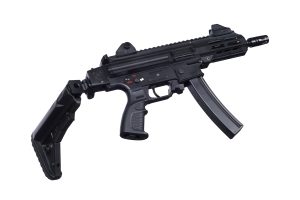

- Thanks to overhead spring system gives to possibility of use with stockless, folding stock or telescopic stock
- Thanks to the Picatinny rails on the top, and M-Lock features sides of the barrel and bottom, it allows the attachment and use of additional equipment
Technical Specifications
-
Caliber
9x19 mm -
Barrel Material
AISI-SAE 4140 (42CrMo4) -
Barrel Finish
Melonite -
Receivers Materrial
7075 T6 Aluminium Alloy -
Muzzle
1/2-28 TPI, 3 lugged for flash hiders & suppressors -
Flash Hiders
1.80" (46 mm) -
Magazine Capacity Options
10-20-30 Shot -
Barrel Length
6.5" (165 mm)8" (200 mm)10" (254 mm)12" (305 mm) -
Total Length Wihtout Stock
400 mm (15,75") -
Weight
min. 2270 gr (5 lb) (Without Magazine)
-
Operation
Blowback Close Bolt -
Mode Of Operation
Fully & Semi- Automatic -
Fire Selector Position
Ambidextrous -
Trigger Pull Force
25-55 Newton -
Cocking Force
60-100 Newton -
Safety
Trigger Block & Firing Pin Safety -
Sight
Mechanic Sight Front&Rear -
Height
approx 8.58” (218 mm) -
Width
approx 2.26” (57.5 mm) -
Effective Range
150 m - 490 ft (Effective) -
Shoting Pattern
4 MOA (100 m) -
Muzzle Velocity
400 m/s (±30m/s) (1312 ft/s) -
Barrel Profile
Saami Z299 3 Standard Luger 9 mm, Luger Plus 1:10” 6 grooves right hand twist
